3-Axis Laser Engraver
The ideal laser engraving solution for complex components in metal, plastic, and rubber, enabled by advanced XYZ motion control.
Versatile
This 3-axis laser marker for curved and irregular surfaces ensures precise laser engraving on complex parts—both in shape and size.
Flexible
Its modular configuration allows easy expansion of the engraving area, making it suitable for a wide range of industrial applications.
High-performance
Delivers reliable, high-quality results even in continuous production, minimizing downtime
Robot Automation
The XYZ laser maker integrates seamlessly with robotic arms and mechanical systems, automating workflows to boost efficiency and productivity—fully tailored to each client’s production needs.

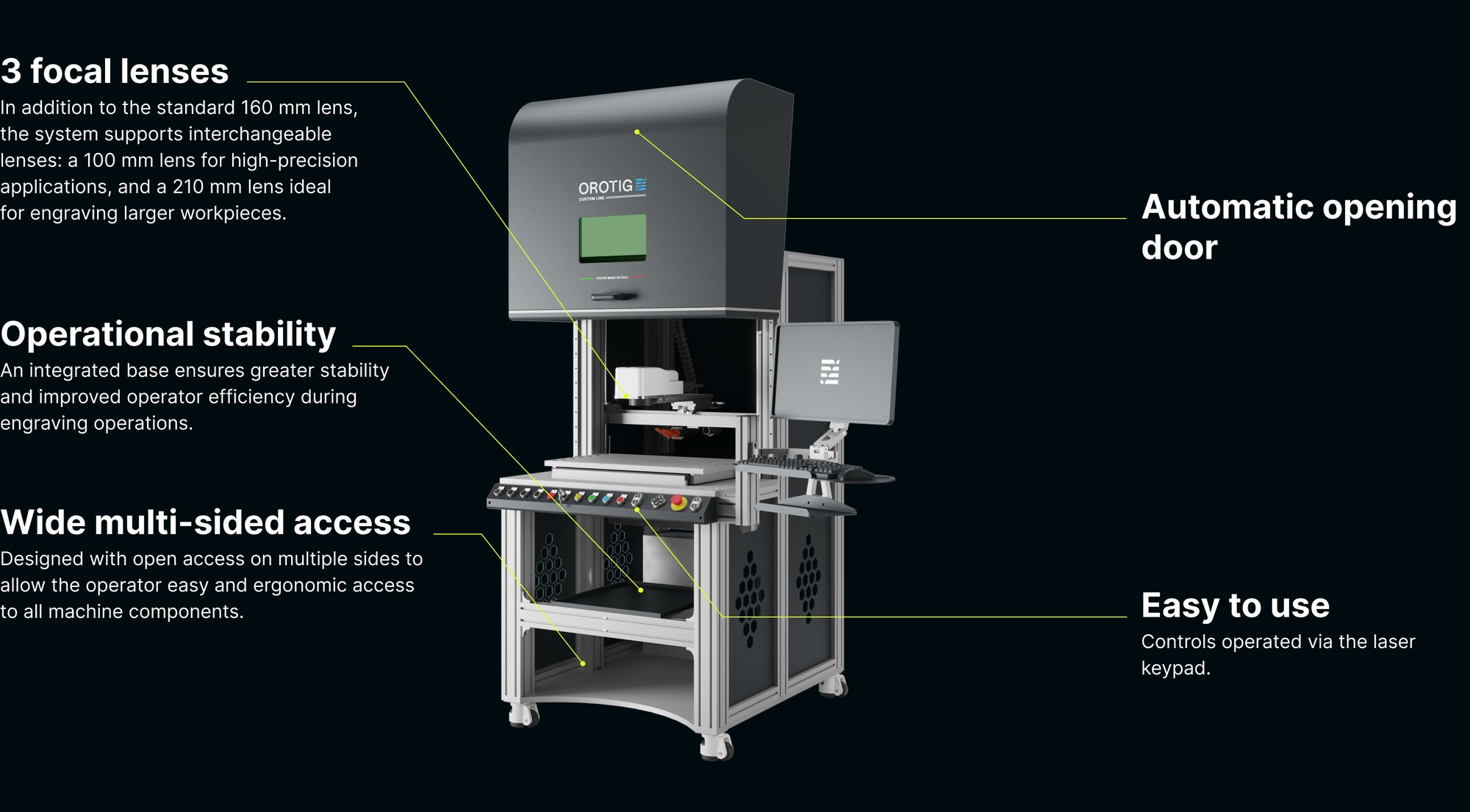

Size and Dimensions
- Features
- Technical Data
- Accessories
- Downloads
TECHNICAL DATA
MPH XYZ
Power sources available
30 W, 30 W MOPA, 50 W, 70 W, 100 W
Focal lenses available
100 mm, 160 mm, 210 mm
Marking area
60 x 60 mm, 110 × 110 mm, 145 x 145 mm (depending on lens)
Type of Z axis
With stepper motorBrushless Mitsubishi
Stroke of X-Y-Z axis
X 600 mm – Y 400 mm – Z 400 mm
Max dimensions of workpiece
700 mm x 400 mm
Max weight of workpiece
150 kg
Safety class
Class 1 (closed), Class 3R (open)
Cooling system
Forced air
Wave length
1064 nm
Power supply
230 V ±10% 50-60 Hz
Dimensions
W 956 mm – D 1178 mm – H 1815 mm (2419 mm with door open)
Weight
365 kg
Chuck setup
Yes
Chucks
DIV 20: Precision self-centering chucks with a diameter of 80 mm.
DIV 32: Precision self-centering chucks with a diameter of 125 mm.
Custom: Custom chucks can be requested with hundredth resolution.
TBH BF 100 R e filtri M5, HEPA 13, activated carbon
(airflow 30/230 m³/h, diameter 50 mm)
TBH LN 230 e filtri M5, HEPA 13, activated carbon
(airflow 50/250 m³/h, diameter 50 mm)
