    High-performance welding of all metals

    Superior welding quality, even on reflective materials such as silver and platinum.

    Coccarda

    Made in Italy reliability

    The reliability and durability of Italian design in a machine that is perfect even for small spaces.

    Icona marcatura

    Perfect welds

    Soft, clean, splatter-free welding due to a soft, modulated pulse.

    Effortlessly welds even difficult metals

    For handling highly reflective metals such as silver or platinum, or when high peak powers are required, Evo X allows for maximum pulse control, guaranteeing the highest quality welding of any material.

    Alta potenza di picco

    High peak power

    Up to 9 kW.

    Precisione unica

    Small spot size

    Welding spot size up to 0.1 mm.

    Luminosity

    Adjustable LED lighting

    Patented to facilitate welding on reflective metals.

    Easy to use, even for less-experienced operators

    With a simple and intuitive graphic interface and a library of preset parameters specifically designed for perfect results on various materials, Evo X can be used immediately, even by inexperienced operators.

    The intuitive graphic user interface of Orotig's Evo X laser welder makes it easy to change parameters from the touch screen.

    Intuitive interface

    An intuitive graphical interface allows you to easily change settings from the touch screen.

    Video library of Orotig's Evo X laser welder, including a basic welding course with the possibility of recording operations and using them for training and education of new resources.

    Video library

    A video library is included with a basic welding course, providing the option to record the processes and use them for training new personnel.

    Pre-set parameters of Orotig's Evo X laser welder for perfect welding on all types of material and the possibility to save customised parameters.

    Preset parameters

    Preset parameters to perfectly weld any type of material, with the option to save customized parameters.

    Made in Italy reliability and design

    The Evo X series is the desktop generation of Orotig laser welding machines: compact, robust and 100% Italian. Their reliability and effective assistance make them the ideal partner for optimizing business processes, reducing costs and processing times.

    DOWNLOAD BROCHURE
    Orotig salesman completing the installation of Orotig's Evo X laser welder at a goldsmith customer.

    Compact and robust

    The compact design and ergonomics make Evo X perfect even in small spaces.

    Size and dimensions of Orotig's Evo X laser welder.
    Size and dimensions of Orotig's Evo X laser welder.
    • Features
    • Technical Data
    • Accessories
    • Downloads

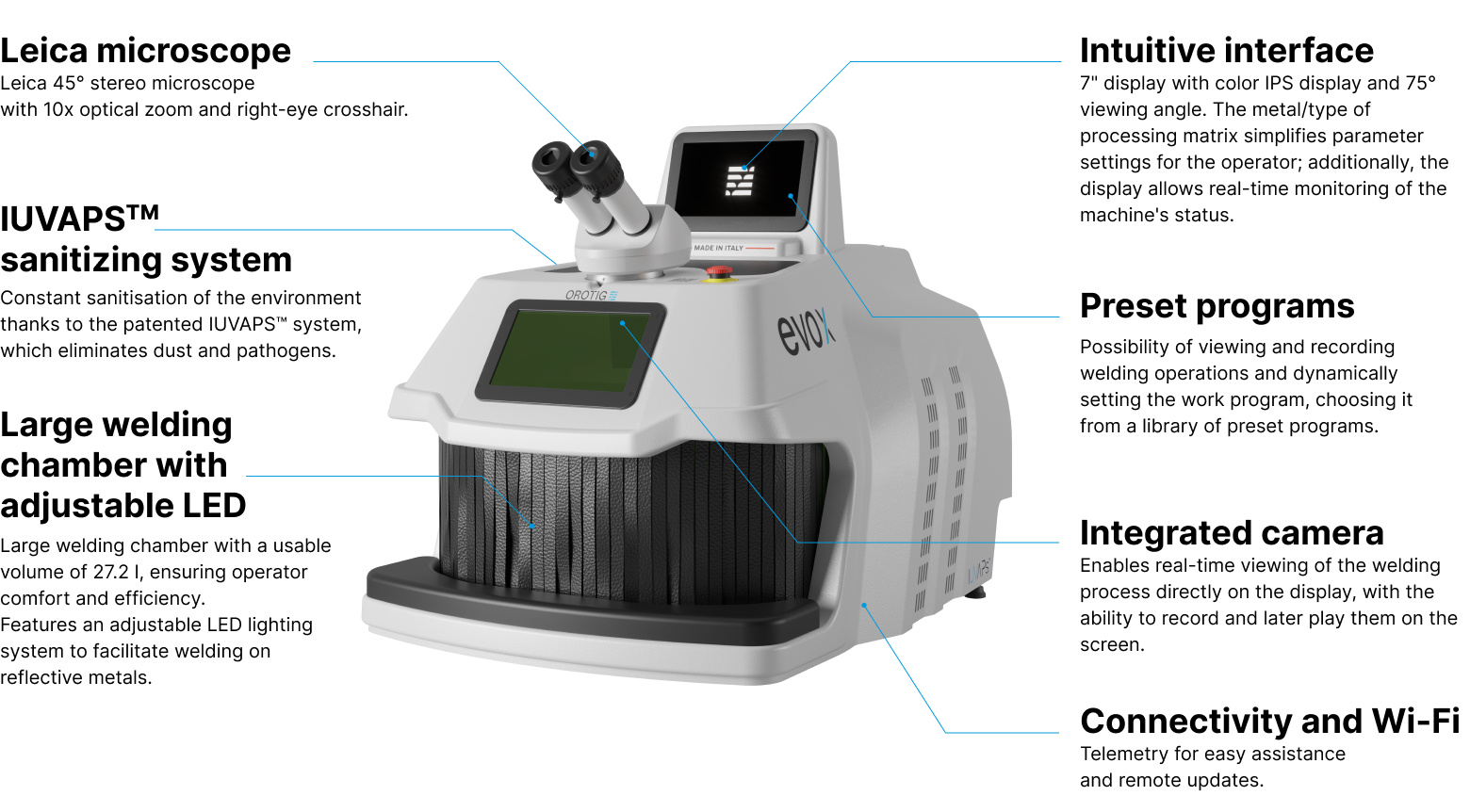

    Technical features of Orotig's Evo X laser welder.

    TECHNICAL DATA

    Evo X

    CRYSTAL TYPE

    Nd:YAG @ 1064

    PULSE POWER

    225 J

    PULSE DURATION

    25 ms

    PEAK PULSE POWER

    9.0 kW

    AVERAGE POWER

    90 W

    PULSE FREQUENCY

    0 - 40 Hz

    ELETRICAL

    115 - 230 VAC ± 10%, 1P +N + PE, 50/60 Hz, 1.8 kW

    FOCAL DIAMETER

    0.1 to 2mm

    COMMAND ACCESS

    External with 7" capacitive touch screen display, internal with rotary switch

    COOLING SYSTEM

    Liquid cooled (4 l) with forced ventilation

    WEIGHT

    41 Kg

    Evo X
    go back

    Evo X

    CRYSTAL TYPE

    Nd:YAG @ 1064

    PULSE POWER

    225 J

    PULSE DURATION

    25 ms

    PEAK PULSE POWER

    9.0 kW

    AVERAGE POWER

    90 W

    PULSE FREQUENCY

    0 - 40 Hz

    ELETRICAL

    115 - 230 VAC ± 10%, 1P +N + PE, 50/60 Hz, 1.8 kW

    FOCAL DIAMETER

    0.1 to 2mm

    COMMAND ACCESS

    External with 7" capacitive touch screen display, internal with rotary switch

    COOLING SYSTEM

    Liquid cooled (4 l) with forced ventilation

    WEIGHT

    41 Kg

    Dynascope head accessory for Orotig's Evo X laser welder.

    Dynascope head

    Height-adjustable motorized stand accessory for the Orotig's Evo X laser welder.

    Adjustable microscope stand (5°-25°)

    Pneumatic pedal accessory for the Orotig's Evo X laser welder.

    Pneumatic pedal

    Internal wrist rest accessory for the Orotig's Evo X laser welder.

    Internal wrist rest

    Motorised table accessory for the Orotig's Evo X laser welder.

    Adjustable height table

    Analogic pedal accessory for the Orotig's Evo X laser welder.

    Analogic pedal

    Evo-X_Downloads
    Brochure Evo X ITA
    Evo-X_Downloads
    Brochure Evo X ENG
