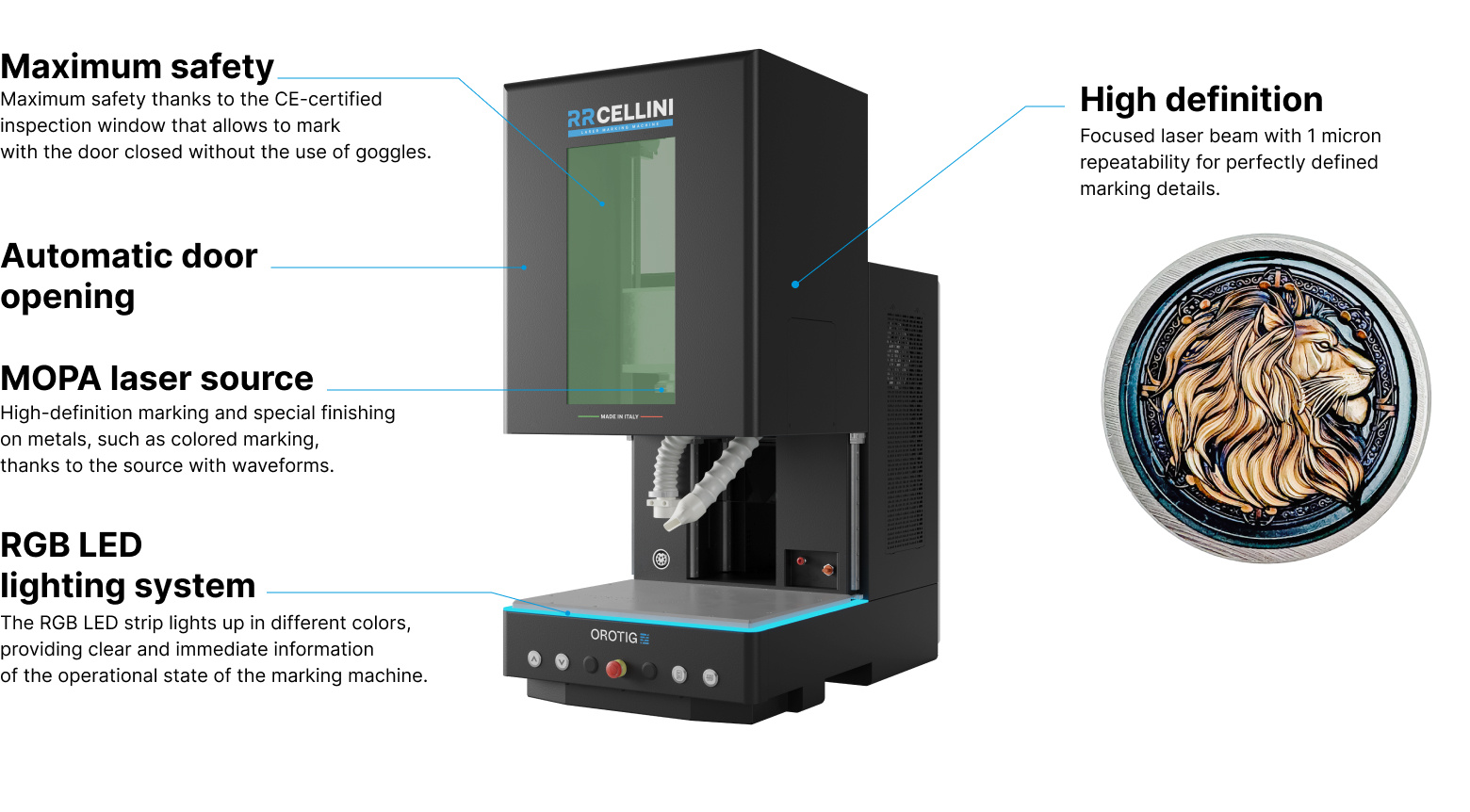

Reduced processing times
Up to 10 times as fast as other processes such as EDM or milling.
Perfect finish
A high-quality product and finish that does not require additional processing.
Easy to use
Marking in just a few clicks thanks to the proprietary software and a simple, intuitive interface.
Quality and precision
The technology developed for RR Cellini enables the gradual removal of very thin layers of material, each with a thickness of 1 micron, leading to incredibly precise marking of details compared to CNC systems.
Production efficiency
RR Cellini reduces processing times by up to ten times compared to methods such as EDM or milling and delivers a finished nonporous mould, eliminating the need for subsequent treatments.
3D marking in just a few clicks
Simple steps for all operators: select the material to process, upload the file, focus on the piece and start marking.
Perfect parameters for every material
A matrix allows you to experiment with different combinations of frequency, power and speed.
MOPA source for special processes
The source is equipped with waveforms to modulate the duration of the laser pulse.
Size and dimensions
- Features
- Technical Data
- Accessories
- Downloads
TECHNICAL DATA
RR Cellini
LASER TYPE
Ytterbium Impulse Fiber MOPA Laser
LASER SOURCE (NOMINAL POWER)
30 W
FOCAL LENSES
180 mm
MAX ENGRAVING AREA
130×130 mm
Z - AXIS TYPE
Electrical with manual and software control
Z - AXIS STROKE
220 mm
SPEED RANGE
Up to 10 m/s
PULSE FREQUENCY
1.6 kHz - 2000 kHz
MAX PULSE ENERGY
0.7 mJ
PULSE WIDTH
2, 4, 8, 14, 30, 50, 100, 200 ns
BEAM QUALITY
≤ 2 m²
LASER CLASS
Class 1 (closed), Class 3R (open)
COOLING SYSTEM
Forced air
WAVELENGTH
1064 nm
POWER SUPPLY
230 Vac ± 10%, 50/60 Hz, 1P + N + PE, 0.5 kW
SPOT DIAMETER
50 μm
WEIGHT
71 Kg
Rotary & Spindles
Tiltable Support
3 in 1 Clamp
