Coccarda

Consistent, high-quality results

Thanks to the automatic vacuum and overpressure functions and the innovative horizontal casting system, the finished product has a perfectly smooth and porosity-free surface.

Ingranaggio

Fully automatic

The operator only needs to push a button, while the tilting and the blocking happens in a completely automatic way.

Compattezza

Compact

Seamless placement in any lab, even in the smallest spaces, combining efficiency and versatility.

Easy to use and reliable

Prometheus is perfect for first-time operators. Simplifying the experience, it ensures quality, accessibility and ease of use for all users.

Icona_tocco

Intuitive software

Engineered for user-friendly operation, this interface ensures a smooth casting experience, offering the possibility of creating customised programmes adapted to the operator’s specific casting needs.

Customer centric

Safety at the forefront

Prometheus boasts a sturdy, heat-resistant body that ensures maximum safety and minimal absorption (2.5 Kw).

Operatore service

Low maintenance, few consumables

Prometheus stands out for its durability and minimal maintenance requirements. It does not require any consumables, representing enduring quality and cost-effectiveness.

The first inline csasting system for consistent high-quality results

With its linear casting system (patent-pending), Prometheus features a design where the crucible is in  horizontal position and alings perfectly with the flask. This innovative design marks a groundbreaking advancement, enabling the direct and swift pouring of metal into the flask. This ingenious approach not only streamlines the process but also prevents temperature drops and minimizes vortices, ultimately enhancing the final result’s quality.

DOWNLOAD BROCHURE
Thanks to its patented system with the crucible in horizontal and centered alignment, Prometheus minimizes temperature drops and ensures a unique quality of fusion.

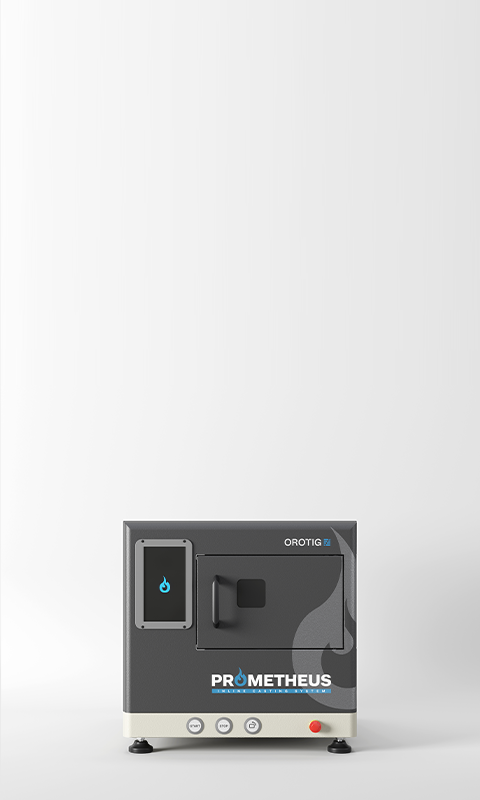

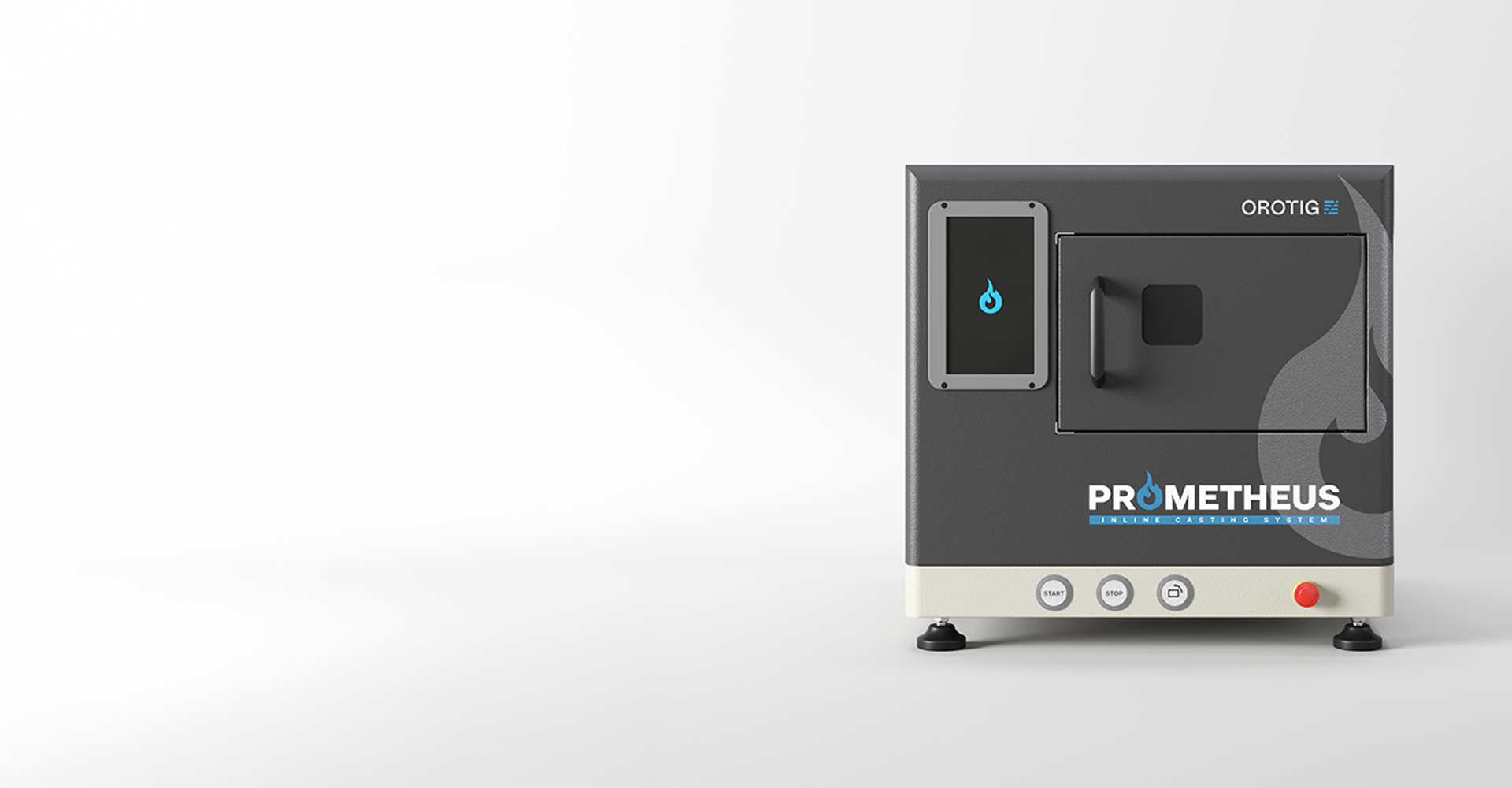

Tabletop
casting machine for gold, silver, and platinum

Prometheus enables the casting of even small amounts of metal. Thanks to its automatic vacuum and overpressure functions (up to 2 Bar) and inductive power mixing, it ensures flawlessly smooth surfaces and perfect flask filling, even for filigree jewelry pieces.

Silver fusion tree made with the Prometheus casting machine by Orotig.

Silver

Casting volumes: 90 g

Gold fusion tree made with the Prometheus casting machine by Orotig.

Gold

Casting volumes: 150 g

Platinum fusion tree made with the Prometheus casting machine by Orotig.

Platinum

Casting volumes: 140 g

Versatile in any workplace setting

Prometheus efficiently handles automatic functions with minimal Argon gas consumption, eliminating the need for compressed air and thereby optimizing space utilization. Furthermore, while in its standard configuration the external chiller allows for a continuous casting cycle, the integrated air/water cooling system allows for two consecutive casting cycles without the need for an external chiller, thereby optimizing shop space even further.

Size and dimensions of Orotig's Prometheus laser welder.
Size and dimensions of Orotig's Prometheus laser welder.
  • Features
  • Technical Data
  • Accessories
  • Downloads

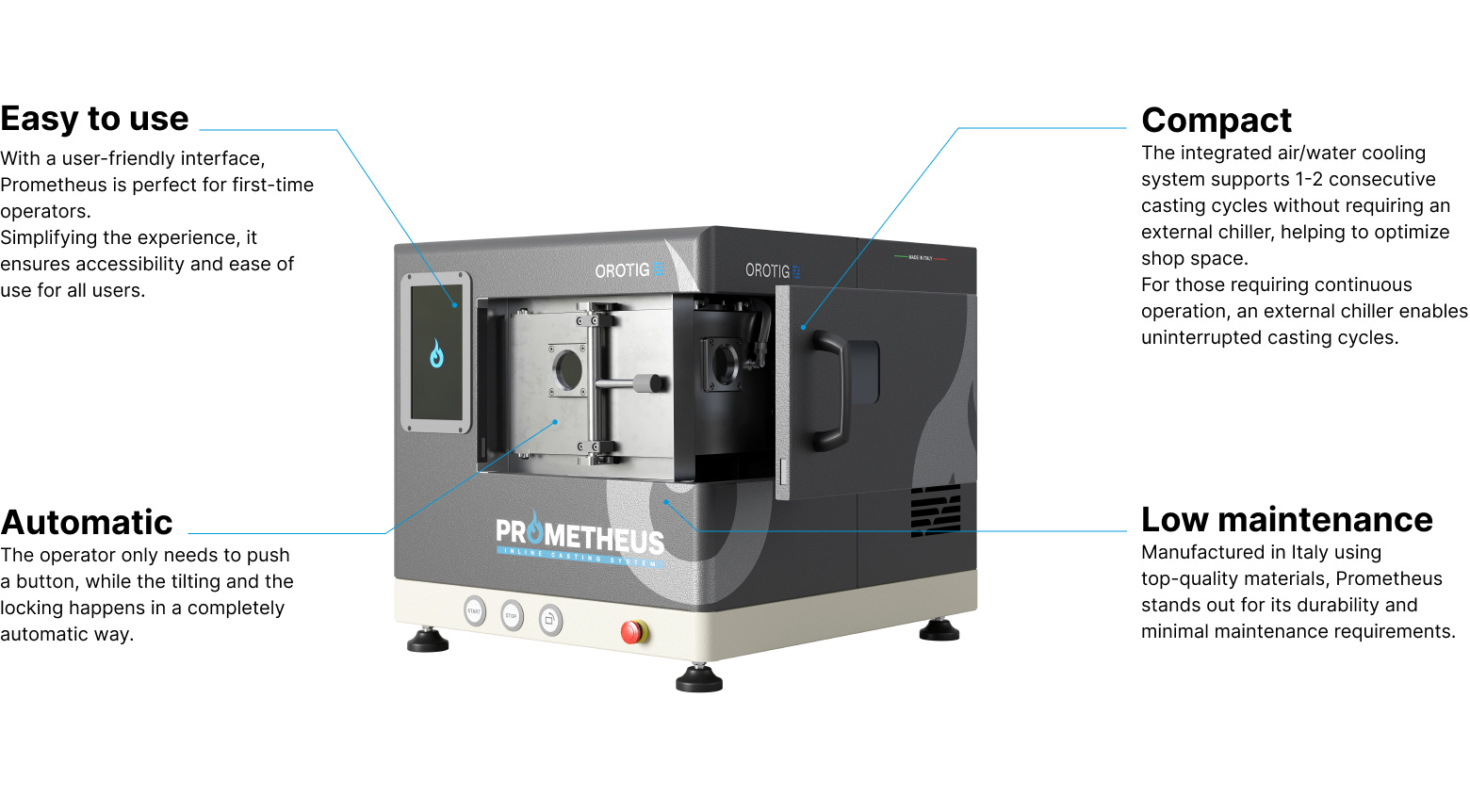

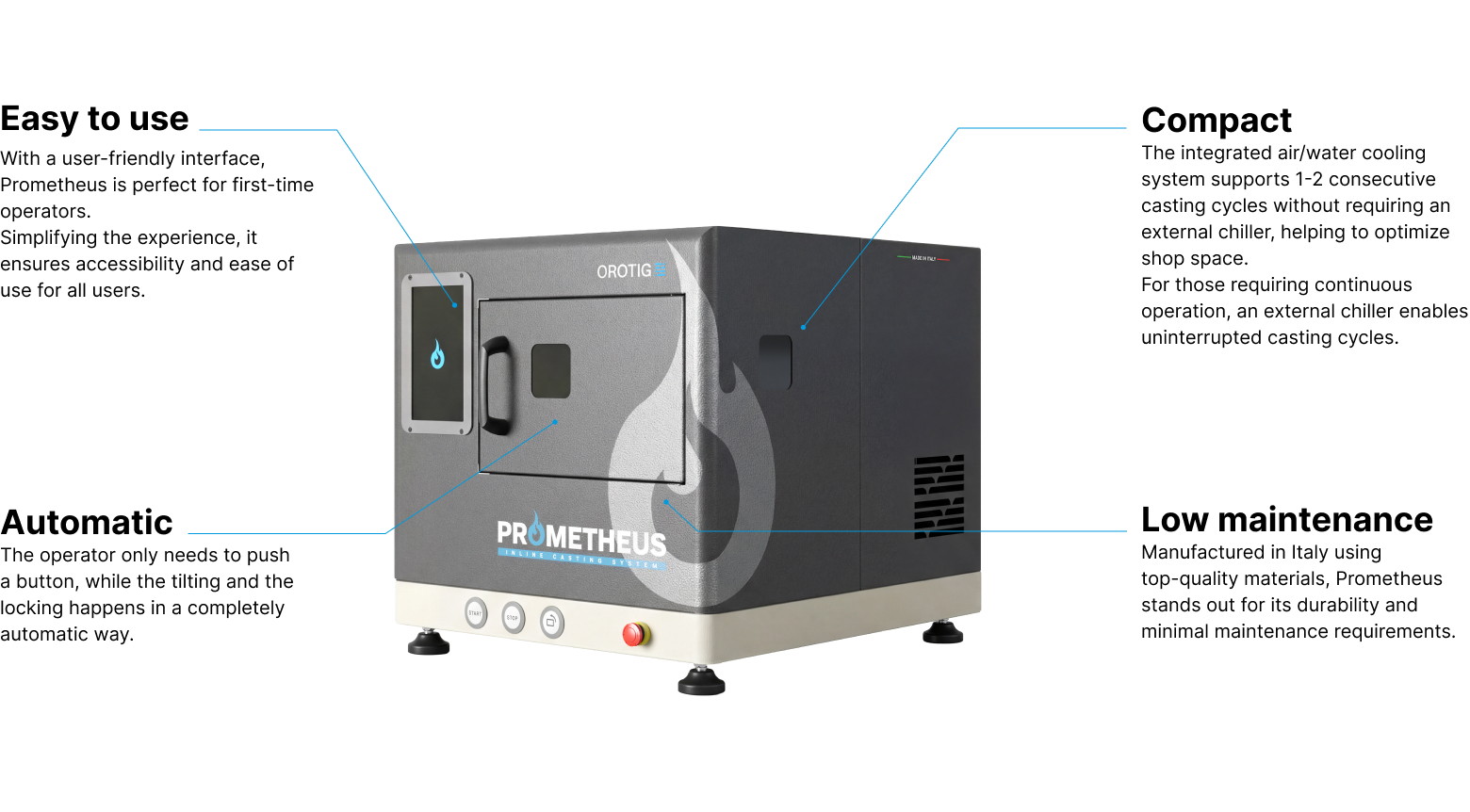

Technical features of Orotig's Prometheus laser welder.

TECHNICAL DATA

Prometheus

CASTING PROCESS

Induction with controlled atmosphere

VACUUM

10-2 bar

CASTING VOLUMES (gr)

Au 18 kt (150 g)

Ag (90 g)

Pt (140 g)

MAX FLASK SIZE (h X 0, mm)

90 × 100

TEMPERATURE CONTROL

Pyrometer, up to 2000°C

FLASK BLOCKING

Automatic

FLASK FILLING

Automatic

FLASK FILLING SYSTEM

Tilting

COOLING SYSTEM

Integrated air/water cooling system - Optional external water cooling system

DISPLAY

Touch screen 7”

POWER MAX

230 Vac ±10% 50/60 Hz Single Phase - max power consumption 3 kW

COMPRESSED AIR

Not needed

WEIGHT

65 kg

Chiller_prometheus_Orotig

Chiller



The solution for high-quality casting across all precious metals
