    Massima-produttività

    Maximum productivity

    +15 hours of continuous welding without the need for breaks

    Schermo e fumetto

    Ease of use

    Easy to use, even for less-experienced operators, due to the intuitive interface and preset parameters.

    Icona marcatura

    High performance

    It easily welds even difficult metals such as silver and platinum without interruption.

    Increases productivity by eliminating machine downtime

    With a very high peak power and water cooling system with a 10-litre tank and double radiator, Revo X guarantees up to 15 hours of production time, eliminating the need for downtime and improving your company’s productivity and workflows.

    Icona frequenza

    High frequency

    Up to 40 pulses per second

    Alta potenza di picco

    High peak power

    Up to 280 J

    Ampio serbatoio

    Water cooling

    10-l tank

    Exceptional performance

    With its incredible peak power, Revo X can easily process even reflective metals.

    DOWNLOAD BROCHURE
    Bracelet made of reflective metals welded with Orotig's Revo X laser welding machine.

    Easy to use, even for less-experienced operators

    With a simple and intuitive graphic interface and a library of preset parameters specifically designed for perfect results on various materials, Revo X can be used immediately, even by less experienced operators.

    The intuitive graphic user interface of Orotig's Revo X laser welder makes it easy to change parameters from the touch screen.

    Intuitive interface

    An intuitive graphical interface allows you to easily change settings from the touch screen.

    Video library of Orotig's Revo X laser welder, including a basic welding course with the possibility of recording operations and using them for training and education of new resources.

    Video library

    A video library is included with a basic welding course, providing the option to record the processes and use them for training new personnel.

    Pre-set parameters of Orotig's Revo X laser welder for perfect welding on all types of material and the possibility to save customised parameters.

    Preset parameters

    Preset parameters to perfectly weld any type of material, with the option to save customized parameters.

    Great performance, small size

    Revo X guarantees exceptional performance while remaining the most compact machine on the market. Available in a bench version or with a motorized height-adjustable pedestal.

    Size and dimensions of Orotig's Revo X laser welder.

    Welding chamber


    Depth: 241 mm
    Width: 423 mm
    Height: 125 mm

    Distance between the focal point and the bottom of the welding chamber


    110 mm

    Size and dimensions of Orotig's Revo X laser welder.
    • Features
    • Technical Data
    • Accessories
    • Downloads

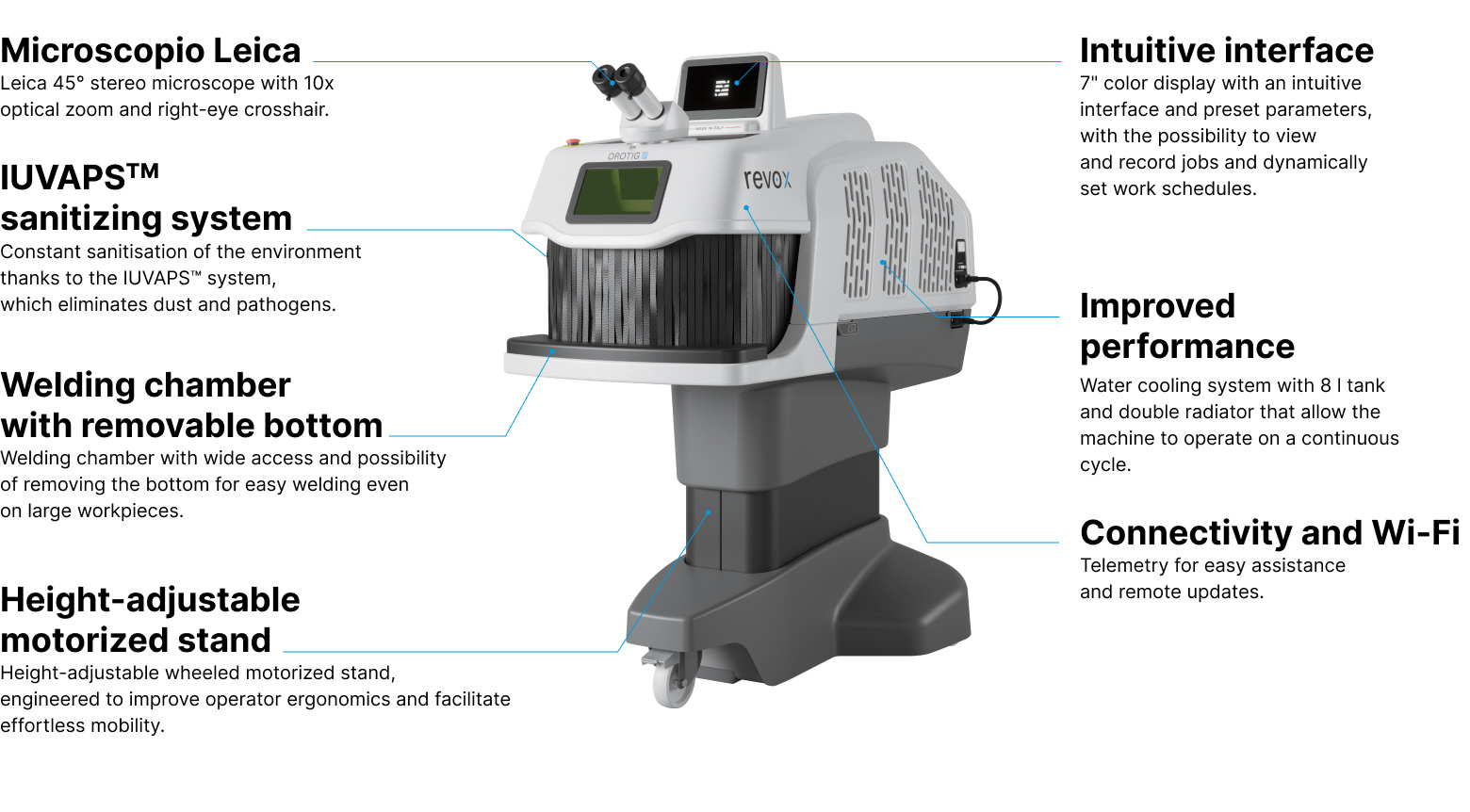

    Technical features of Orotig's Revo X laser welder.

    TECHNICAL DATA

    Revo X

    Revo X+

    Revo X2

    CRYSTAL TYPE

    Nd:YAG @ 1064

    Nd:YAG @ 1064

    Nd:YAG @ 1064 [x2]

    PULSE POWER

    240 J

    240 J

    280 J

    PULSE DURATION

    25 ms

    25 ms

    25 ms

    PEAK PULSE POWER

    10.0 kW

    10.0 kW

    12.0 kW

    AVERAGE POWER

    90 W

    120 W

    150 W

    PULSE FREQUENCY

    0 - 40 Hz

    0 - 40 Hz

    0 - 40 Hz

    ELECTRICAL

    230 VAC ± 10%, 1P + N + PE, 50/60 Hz, 2.2 kW

    230 VAC ± 10%, 1P + N + PE, 50/60 Hz, 2.2 kW

    230 VAC ± 10%, 1P + N + PE, 50/60 Hz, 3.6 kW

    FOCAL DIAMETER

    0.1 to 2 mm

    0.1 to 2 mm

    0.1 to 2 mm

    COMMAND ACCESS

    External with 7" capacitive touch screen display, internal with rotary switch

    External with 7" capacitive touch screen display, internal with rotary switch

    External with 7" capacitive touch screen display, internal with rotary switch

    COOLING SYSTEM

    Forced air with double circuit, 8 l liquid and double radiator

    Forced air with double circuit, 8 l liquid and double radiator

    Forced air with double circuit, 8 l liquid and double radiator

    WEIGHT

    65 Kg

    75 Kg

    75 Kg

    Revo X
    go back

    Revo X

    CRYSTAL TYPE

    Nd:YAG @ 1064

    PULSE POWER

    240 J

    PULSE DURATION

    25 ms

    PEAK PULSE POWER

    10.0 kW

    AVERAGE POWER

    90 W

    PULSE FREQUENCY

    0 - 40 Hz

    ELECTRICAL

    230 VAC ± 10%, 1P + N + PE, 50/60 Hz, 2.2 kW

    FOCAL DIAMETER

    0.1 to 2 mm

    COMMAND ACCESS

    External with 7" capacitive touch screen display, internal with rotary switch

    COOLING SYSTEM

    Forced air with double circuit, 8 l liquid and double radiator

    WEIGHT

    65 Kg

    Revo X+
    go back

    Revo X+

    CRYSTAL TYPE

    Nd:YAG @ 1064

    PULSE POWER

    240 J

    PULSE DURATION

    25 ms

    PEAK PULSE POWER

    10.0 kW

    AVERAGE POWER

    120 W

    PULSE FREQUENCY

    0 - 40 Hz

    ELECTRICAL

    230 VAC ± 10%, 1P + N + PE, 50/60 Hz, 2.2 kW

    FOCAL DIAMETER

    0.1 to 2 mm

    COMMAND ACCESS

    External with 7" capacitive touch screen display, internal with rotary switch

    COOLING SYSTEM

    Forced air with double circuit, 8 l liquid and double radiator

    WEIGHT

    75 Kg

    Revo X2
    go back

    Revo X2

    CRYSTAL TYPE

    Nd:YAG @ 1064 [x2]

    PULSE POWER

    280 J

    PULSE DURATION

    25 ms

    PEAK PULSE POWER

    12.0 kW

    AVERAGE POWER

    150 W

    PULSE FREQUENCY

    0 - 40 Hz

    ELECTRICAL

    230 VAC ± 10%, 1P + N + PE, 50/60 Hz, 3.6 kW

    FOCAL DIAMETER

    0.1 to 2 mm

    COMMAND ACCESS

    External with 7" capacitive touch screen display, internal with rotary switch

    COOLING SYSTEM

    Forced air with double circuit, 8 l liquid and double radiator

    WEIGHT

    75 Kg

    Dynascope head accessory for Orotig's Revo X laser welder.

    Dynascope head

    Analogic pedal accessory for the Orotig's Revo X laser welder.

    Analogic pedal

    Internal wrist rest accessory for the Orotig's Revo X laser welder.

    Internal wrist rest

    Height-adjustable motorized stand accessory for the Orotig's Revo X laser welder.

    Height-adjustable motorized stand

    Pneumatic pedal accessory for the Orotig's Revo X laser welder.

    Pneumatic pedal

    Height-adjustable motorized stand accessory for the Orotig's Revo X laser welder.

    Adjustable microscope stand (5°-25°)

    Handrail hatchl accessory for the Orotig's Revo X laser welder.

    Handrail hatch

    Rotary device accessory for the Orotig's Revo X laser welder.

    Rotary & device (Ø 80mm)

    Revo-X_Downloads
    Brochure Revo X ITA
    Revo-X_Downloads
    Brochure Revo X ENG
