Orotig presents Evo X Tech, the upgraded version of the industry-leading Evo X laser welder. This upgraded model sets a new benchmark with the SoftSpot technology, that ensures seamless welds even on reflective metals, and an optimized working cycle.

Midi Tech - NEW

Midi Tech - NEW

The Midi Tech welder, reliable and easy to use, represents the perfect entry-level solution for performing small goldsmithing tasks and repairs.

Evo X

Evo X

The precise and reliable welding solution that effortlessly delivers superior welding quality.

Evo White

Evo White

With its compact design and high-quality parts, Evo White is the ideal welding machine

Revo X

Revo X

The high frequency, peak power and advanced cooling system make Revo X our welding machine with the highest performance, capable of continuous operation for +15 hours.

Aries

Aries

The Aries industrial welding machine is able to operate continuously while meeting high quality standards, even on large workpieces, due to the open welding chamber and 3-axis table movement.

Antares

Antares

Antares is an industrial laser welding machine designed for repairing moulds or large workpieces. With a motorized arm, it can weld at points that would otherwise be difficult to reach.

Flash

Flash

The Flash series offers a range of fibre-optic laser sources that can be integrated into production processes requiring a high degree of speed and automation. Compatible with all chain manufacturing machines, they guarantee uniformity and high-quality welds

Marking & Cutting

Canova

Canova

Canova, the first in the new generation of Orotig marking lasers, is a high-performance laser with a simple design that stands out for its superior marking quality and attention to detail.

RR Cellini

RR Cellini

The RR Cellini marking laser is a high-precision laser system for quality three-dimensional marking on metal objects.

RR Pico

RR Pico

With a very short laser pulse in the picosecond range, which does not heat up the metal, RR Pico guarantees precise, burr-free, burn-free marking, enabling work even near resins or other heat-sensitive materials.

RR Writer

RR Series

Thanks to their special configuration and the high quality of their components, RR marking machines are perfect for marking and engraving on any type of metal and alloy, on materials of different types and thicknesses.

TDL

TDL

Our innovative integrated laser cutting and marking system for large-scale production is capable of precise, high-speed cutting up to 4 mm deep.

Casting

EcoTech - NEW

EcoTech - NEW

With a chamber capable of casting up to 500 grams of platinum at a single time in an argon gas atmosphere, PT Cast is the ideal choice for obtaining extremely high-quality castings.

Prometheus - NEW

Prometheus - NEW

A new standard for casting precious metals: Orotig presents Prometheus, a fully automatic, easy to use tabletop casting machine that enables jewelry producers to create customized designs directly at their shop.

PT Cast

PT Cast

With a chamber capable of casting up to 500 grams of platinum at a single time in an argon gas atmosphere, PT Cast is the ideal choice for obtaining extremely high-quality castings.

TI Cast

TI Cast

With a chamber capable of casting up to 130 grams of titanium at a single time in an argon gas atmosphere, TI Cast is the ideal choice for obtaining extremely high-quality castings.
+39 045 64 00 865

sales@orotig.com
PARTNERS
SERVICE
Open a Ticket | Technical Support

DOWNLOAD SOFTWARE | Remote Assistance

Follow the instructions:

Open a ticket to report the technical issue

Schedule your meeting with the Service department

Download the remote support software
+39 045 64 00 865

sales@orotig.com
CONTACT US

Save the date

Vicenza save the date 1

Vicenza save the date 2

T.Gold 2025

17-21 January 2025

Orotig will be present at T.Gold 2025

Discover more

DISCOVER ALL EVENTS

Icona_ciclo_continuo

Enhanced performance

With an enhanced cooling system, Evo X Tech can sustain a continuous working cycle while upholding the highest standards of welding quality.

Icona_soft_spot

Soft and uniform spot

With the new SoftSpot technology, Evo X Tech can achieve clean and spatter-free welds even on reflective materials thanks to soft, adjustable and uniform shots.

Coccarda

Top performing on all metals

With a maximum power of 250 J and a peak power reaching 10 kW, Evo X Tech ensures exceptional welding quality, particularly on reflective metals.

Continuous duty cycle

The new advanced cooling system designed by Orotig's Research and Development department allows Evo X Tech to operate with a 100% duty cycle, positioning itself as the most powerful and high-performing machine in its category compared to competitors.

DOWNLOAD BROCHURE

The new advanced cooling system allows the Orotig Evo X Tech laser welder to operate on a continuous cycle.

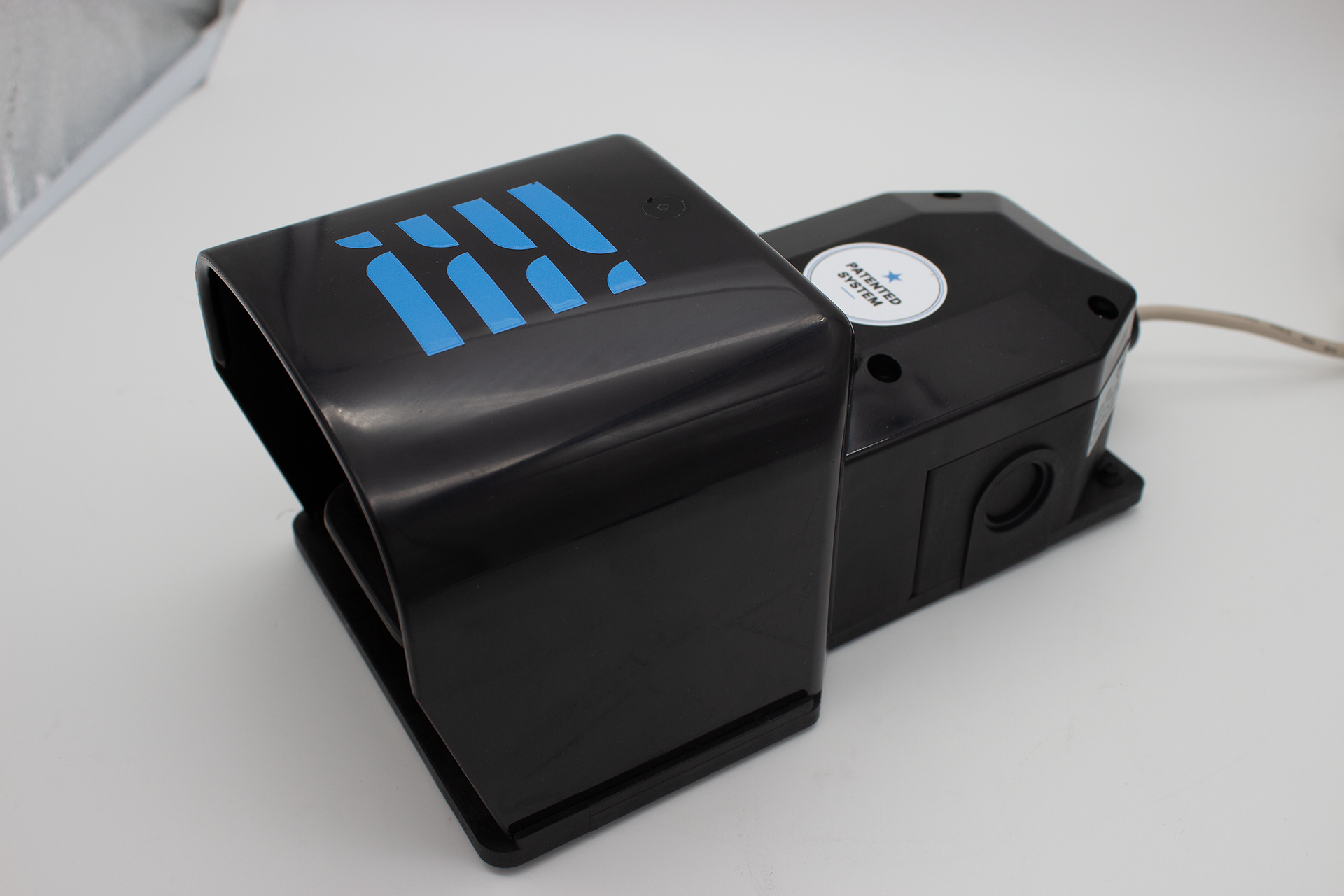

Smart Patented Footswitch for more control

Evo X Tech comes with the Orotig Patented Smart Footswitch, which not only performs all the functions of the traditional footswitch but also enables control over parameter adjustment by varying the pressure on the footswitch, eliminating the need to interrupt workflow.

Ability to modify parameters of the Orotig Evo X Tech welder through the analog pedal instead of the touchscreen.

Plug and play

When the footswitch is connected to the machine, the footswitch icon automatically appears on the home screen, making its use simple and immediate.

Simple and immediate use of the Smart Footswitch of the Orotig Evo X Tech laser welder thanks to automatic connection.

Perfect welding

It is possible to quickly change the effect of the laser on a specific metal, increasing the effectiveness of the melt pool.

Increased welding efficiency on every metal thanks to the Smart Footswitch of the Orotig Evo X Tech laser welder.

Fast parameters changing

Instead of changing parameters from the touch screen, it is possible to do it quickly with the footswitch while welding.

Size and dimensions

Size and dimensions of Orotig's Evo X Tech laser welder.

Size and dimensions of Orotig's Evo X Tech laser welder.

Features
Technical Data
Accessories
Downloads

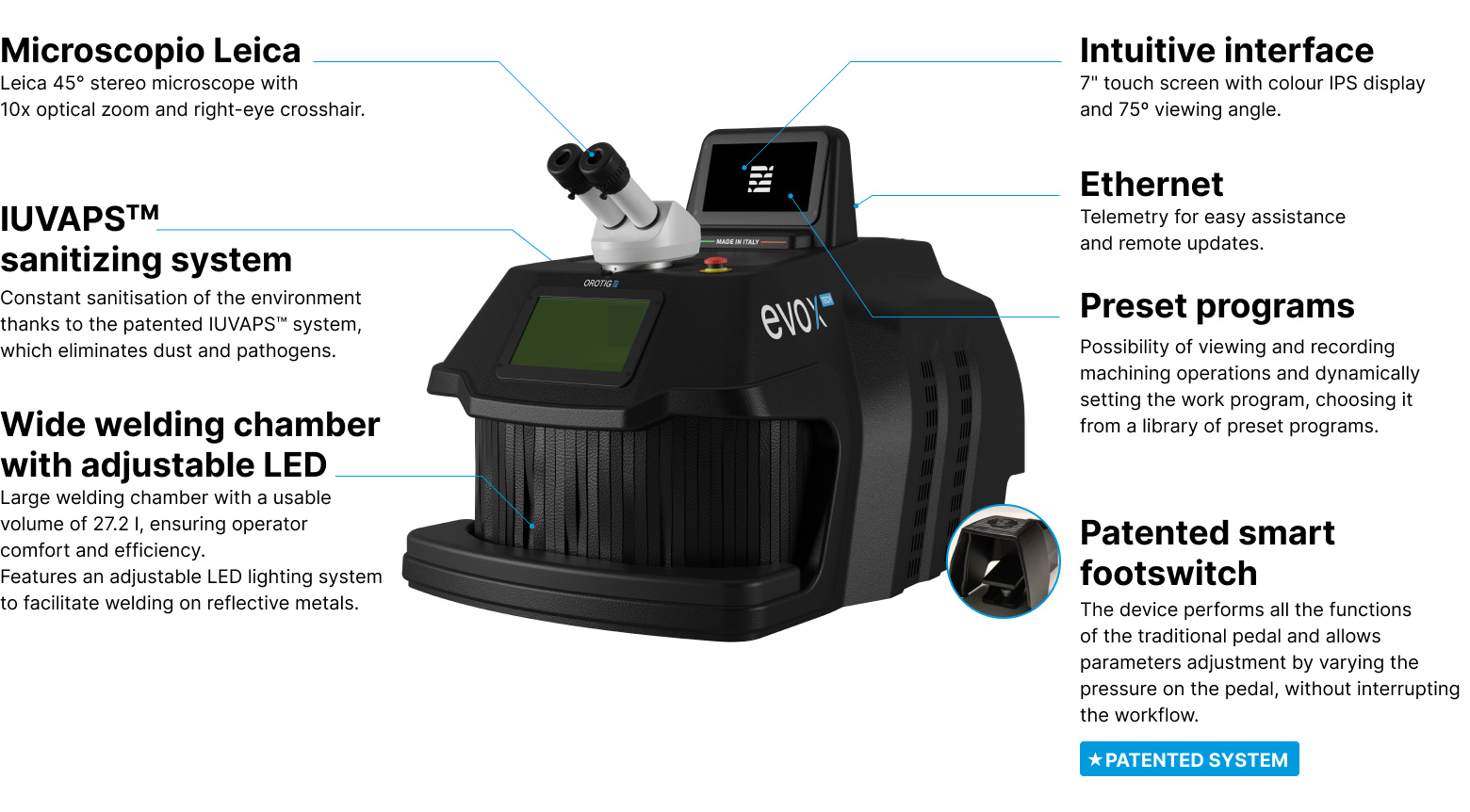

Technical features of Orotig's Evo X Tech laser welder.

TECHNICAL DATA

Evo X Tech

CRYSTAL TYPE

Nd:YAG @ 1064

PULSE POWER

250 J

PULSE DURATION

25 ms

PEAK PULSE POWER

10 kW

AVERAGE POWER

90 W

PULSE FREQUENCY

0 - 40 Hz

POWER SUPPLY

230 VAC ± 10%, 1P +N + PE, 50/60 Hz, 1.8 kW

FOCAL DIAMETER

0.1 to 2 mm

COMMAND ACCESS

External with 7” capacitive touch screen display, internal with rotary switch

COOLING SYSTEM

Liquid cooled (4 l) with forced ventilation

WEIGHT

41 Kg

Evo X Tech

go back

Evo X Tech

CRYSTAL TYPE

Nd:YAG @ 1064

PULSE POWER

250 J

PULSE DURATION

25 ms

PEAK PULSE POWER

10 kW

AVERAGE POWER

90 W

PULSE FREQUENCY

0 - 40 Hz

POWER SUPPLY

230 VAC ± 10%, 1P +N + PE, 50/60 Hz, 1.8 kW

FOCAL DIAMETER

0.1 to 2 mm

COMMAND ACCESS

External with 7” capacitive touch screen display, internal with rotary switch

COOLING SYSTEM

Liquid cooled (4 l) with forced ventilation

WEIGHT

41 Kg

Dynascope head accessory for Orotig's Evo X Tech laser welder.

Dynascope Head

Internal wrist rest accessory for the Orotig's Evo X Tech laser welder.

Internal wrist rest

Pneumatic pedal accessory for the Orotig's Evo X Tech laser welder.

Pneumatic pedal

Height-adjustable motorized stand accessory for the Orotig's Evo X Tech laser welder.

Adjustable microscope stand (5°-25°)

Motorised table accessory for the Orotig's Evo X Tech laser welder.

Adjustable height table

Download Evo X Tech

Brochure Evo X Tech ITA

Download Evo X Tech

Brochure Evo X Tech ENG

Download_corta_EvoXTech

Data Sheet Evo X Tech ITA

Download_corta_EvoXTech

Data Sheet Evo X Tech ENG

Download_pedale_analogico

Data Sheet Smart Footswitch ENG

Download_pedale_analogico

Data Sheet Smart Footswitch ITA
