Exceptional finished product quality
Ackeron-PT Cast ensures smooth, porosity-free, and homogeneous castings thanks to its patented horizontal casting system, which enables rapid metal transfer and minimizes temperature loss.
Maximum efficiency
The automatic cylinder locking and tilting system optimizes setup and operation times, enhancing efficiency and process repeatability.
Simplified operation
Ackeron-PT Cast features a 10" capacitive touchscreen for real-time monitoring of casting parameters, with pre-set programs for platinum, gold, and silver, plus 50 customizable options for quick and easy management.

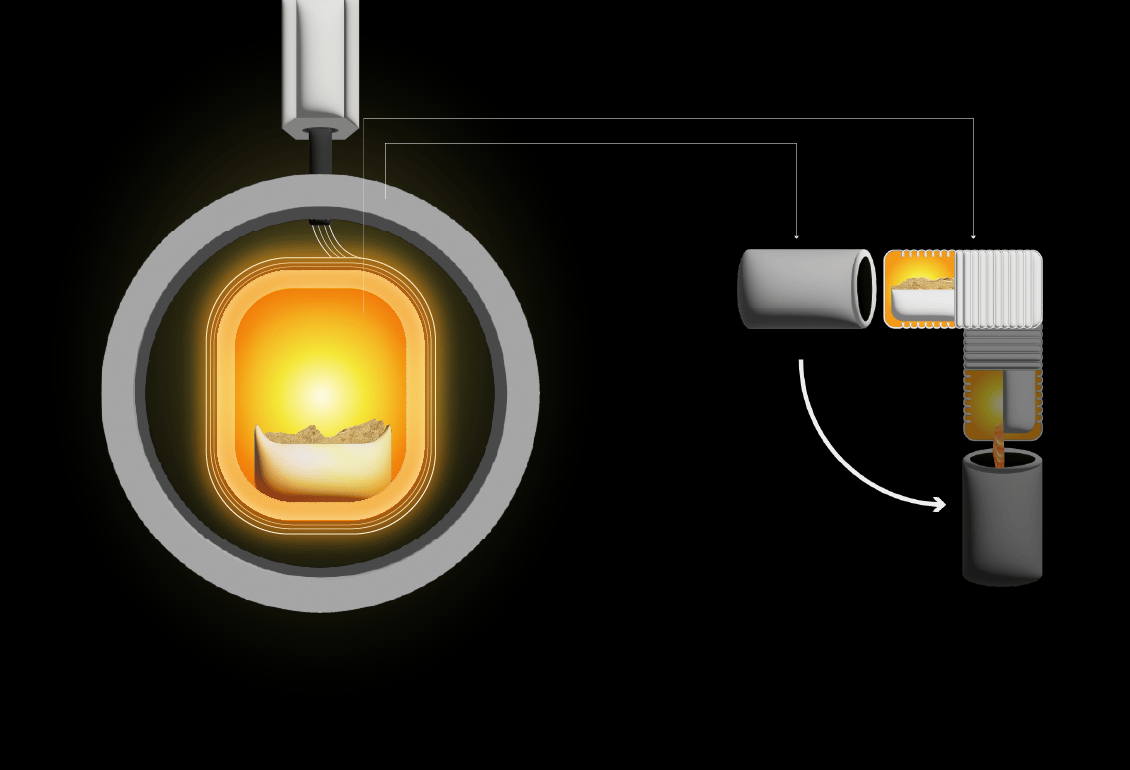

Patented Technology for Platinum Casting
With a horizontal crucible aligned to the casting flask, molten metal is transferred rapidly, reducing temperature drops and turbulence. The high-speed pouring process preserves the fluidity of platinum, ensuring uniform mold filling. Automatic vacuum and overpressure functions up to 2 bar guarantee complete cylinder filling, even for intricate branches, resulting in smooth and compact surfaces.
Intuitive interface
The 10" capacitive display allows real-time monitoring of casting parameters, making process management fast and straightforward.
Customizabile programs
Three pre-set programs for platinum, gold, and silver, plus up to 50 customizable programs to adjust parameters such as temperature, duration, and cooling speed based on specific casting needs.
Connectivity and industry 4.0 integration
Equipped with Ethernet connectivity for remote monitoring and support, Ackeron-PT Cast complies with Industry 4.0 standards, allowing seamless integration into interconnected production systems while ensuring high performance and maximum efficiency.

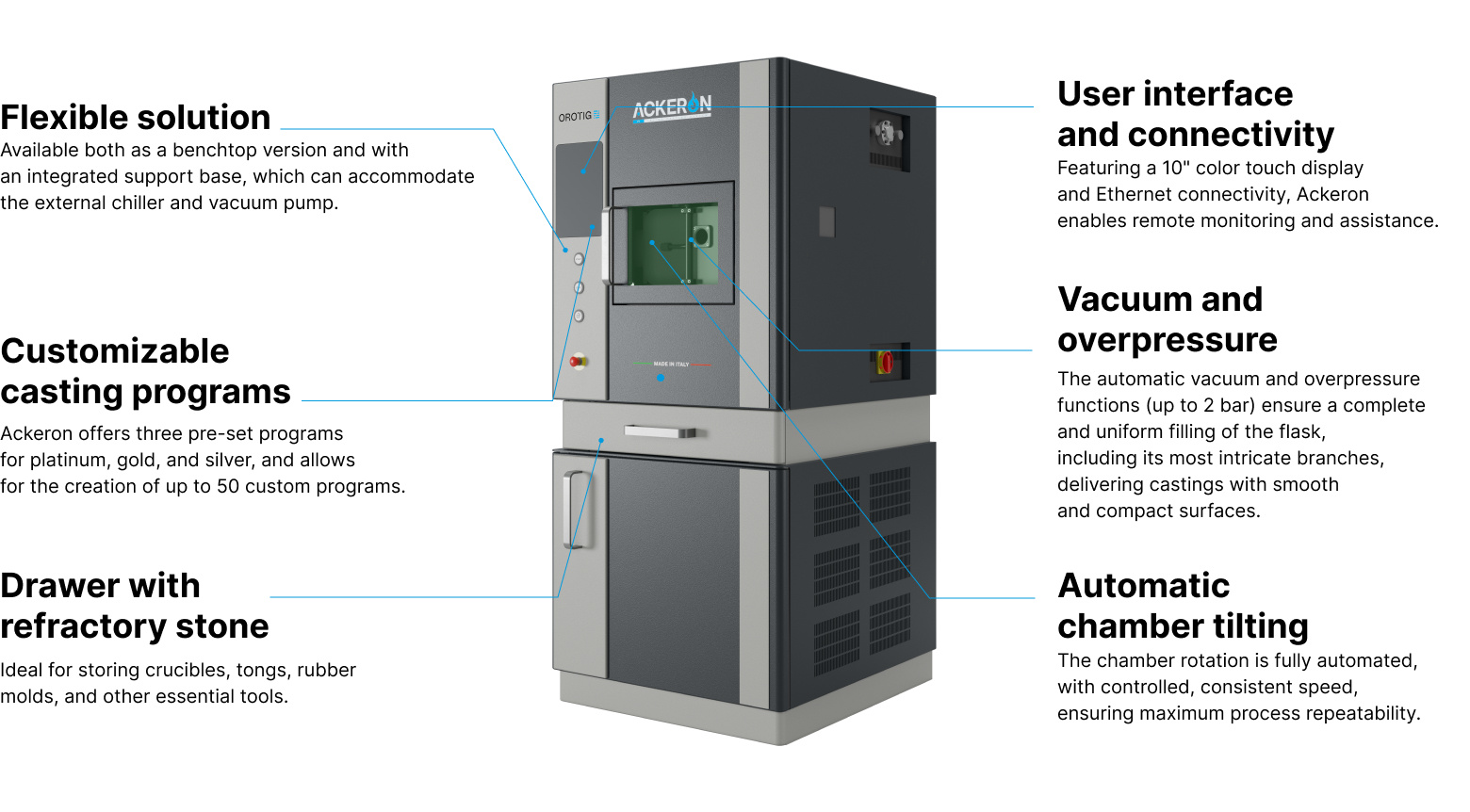

Versatile Design and Functionality for Every Need
The Ackeron-PT Cast platinum casting machine is available in both benchtop and integrated support base version, to accommodate the external chiller and vacuum pump. Both configurations include a practical drawer with a refractory stone, ideal for storing crucibles, tongs, and other essential tools, ensuring an organized workspace and optimizing efficiency during the casting process.
- Features
- Technical Data
- Accessories
- Downloads
TECHNICAL DATA
Ackeron - PT Cast
CASTING PROCESS
Induction with controlled atmosphere
MAX CASTING VOLUMES (g)
Pt (500 g), Au 18 kt (370 g), Ag (250 g)
MIN CASTING VOLUMES (g)
Pt (300 g), Au 18 kt (100 g), Ag (100 g)
OVERPRESSURE WITH GAS
Argon 2 bar
VACUUM
10-2 bar
MAX FLASK SIZE (h x Ø, mm)
170 × 130
TEMPERATURE CONTROL
Pyrometer, up to 2000° C
FLASK LOCKING / FILLING
Automatic / Automatic
COOLING SYSTEM
Optional external water cooling system
DISPLAY
10” Touch screen
POWER
230 Vac ±10%, 60 Hz, 3P + N + PE - max power consumption 10 kW / 400 Vac ±10%, 50 Hz, 3P + N + PE - max power consumption 10 kW
COMPRESSED AIR
6 bar
MACHINE WEIGHT (+ TRANSFORMER)
310 kg (+ 90 kg)
Chiller
The New Generation in Platinum Casting
