    Compattezza

    Compact

    The reduced size and innovative helmet-style opening of the hatch make Canova a compact laser ideal for even the smallest spaces.

    Protezione

    Safe

    This is a Class 1: laser device. It has a special CE-certified inspection window, which enables safe marking without the need for goggles, and sensors that inhibit operation when the hatch is open, guaranteeing total safety for operators and customers.

    Schermo e fumetto

    Easy to use

    Expert operators? No need! With the new proprietary MARKo software, even the least experienced operators can perform marking in just a few clicks.

    Marko: the integrated software for marking in just a few clicks

    In addition, with the new proprietary MARKo software, even inexperienced operators can perform marking in just a few clicks with no margins of error. The guided procedure intuitively assists the operator throughout the entire process, allowing them to import an existing file or create text from scratch.

    The integrated software Marko enables, through guided paths, to assist the operator through various steps, reducing errors in operations.

    Guided marking

    Guided tours accompany the operator through the various steps and reduce the margin of error.

    The integrated software Marko allows, through animated tooltips, to explain the software's functionalities even to first-time users of the marker.

    Animated tooltips

    Tooltips explain the software functionality, also for people using the marking machine for the first time.

    The integrated software Marko allows the operator the operator to either set the marking parameter independently or choose one of our predefined programs.

    Preset parameters

    To enable even less-experienced operators to perform professional marking, the marking parameters can be set independently or one of our predefined programs can be chosen.

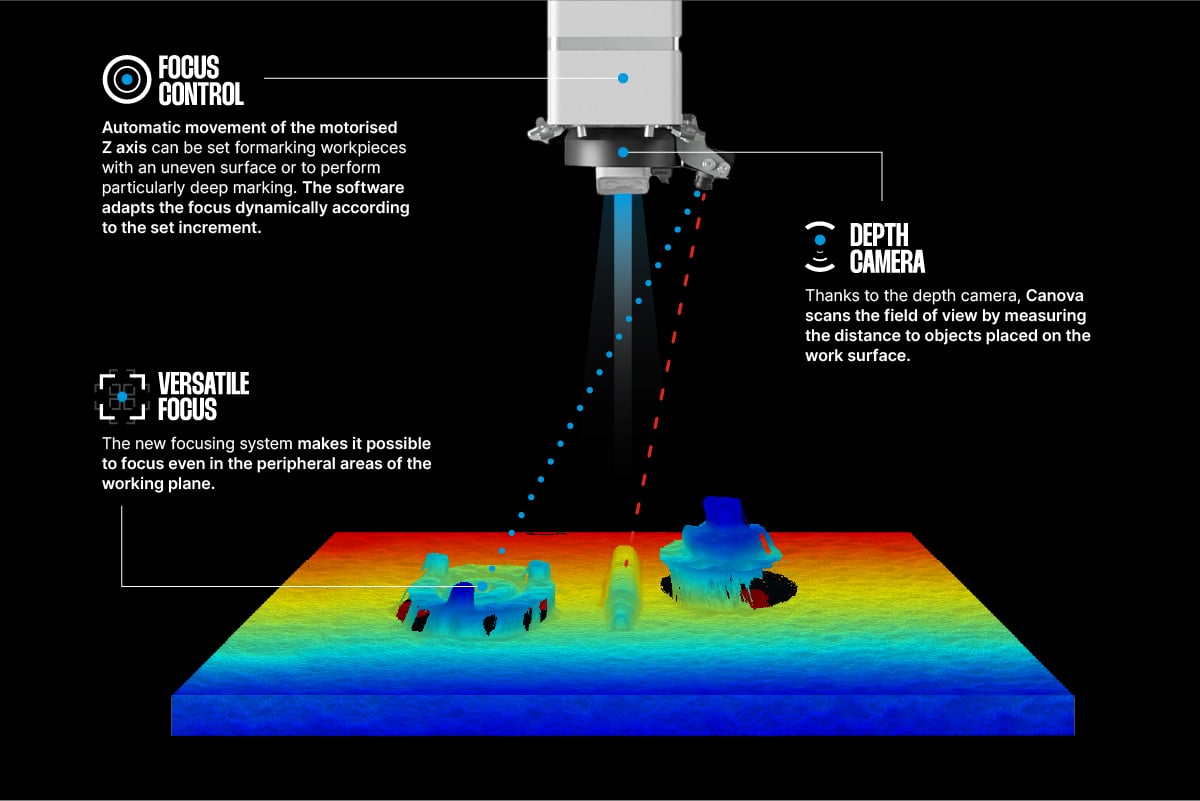

    Automatic focusing

    Orotig has developed an innovative autofocus system that allows for completely automatic focusing on the pieced to be marked, allows perfect focusing in peripheral areas of the work surface.

    DOWNLOAD BROCHURE
    The autofocus system of Orotig's Canova laser marker that allows for completely automatic focusing on the piece to be marked, even in peripheral areas of the work surface.

    Versatility

    In addition to the standard 160-mm lens, one can use a 100-mm lens, which is perfect for extremely precise machining and ultra-high definition of the details, or a 210-mm lens, which is also suitable for larger objects with a marking area of up to 145 mm x 145 mm. With a Z-axis stroke of more than 260 mm and a large work surface, it is possible to mark rigid bracelets and necklaces up to a diameter of 118 mm, even with the longer 210-mm lens.

    3 focal lenses of different lengths available for Orotig's Canova laser marker, each able to guarantee the best marking results on various types of workpiece

    Sizes and dimensions



    Size and dimensions of Orotig's Canova laser marker.
    Size and dimensions of Orotig's Canova laser marker.
    • Features
    • Technical Data
    • Accessories
    • Downloads

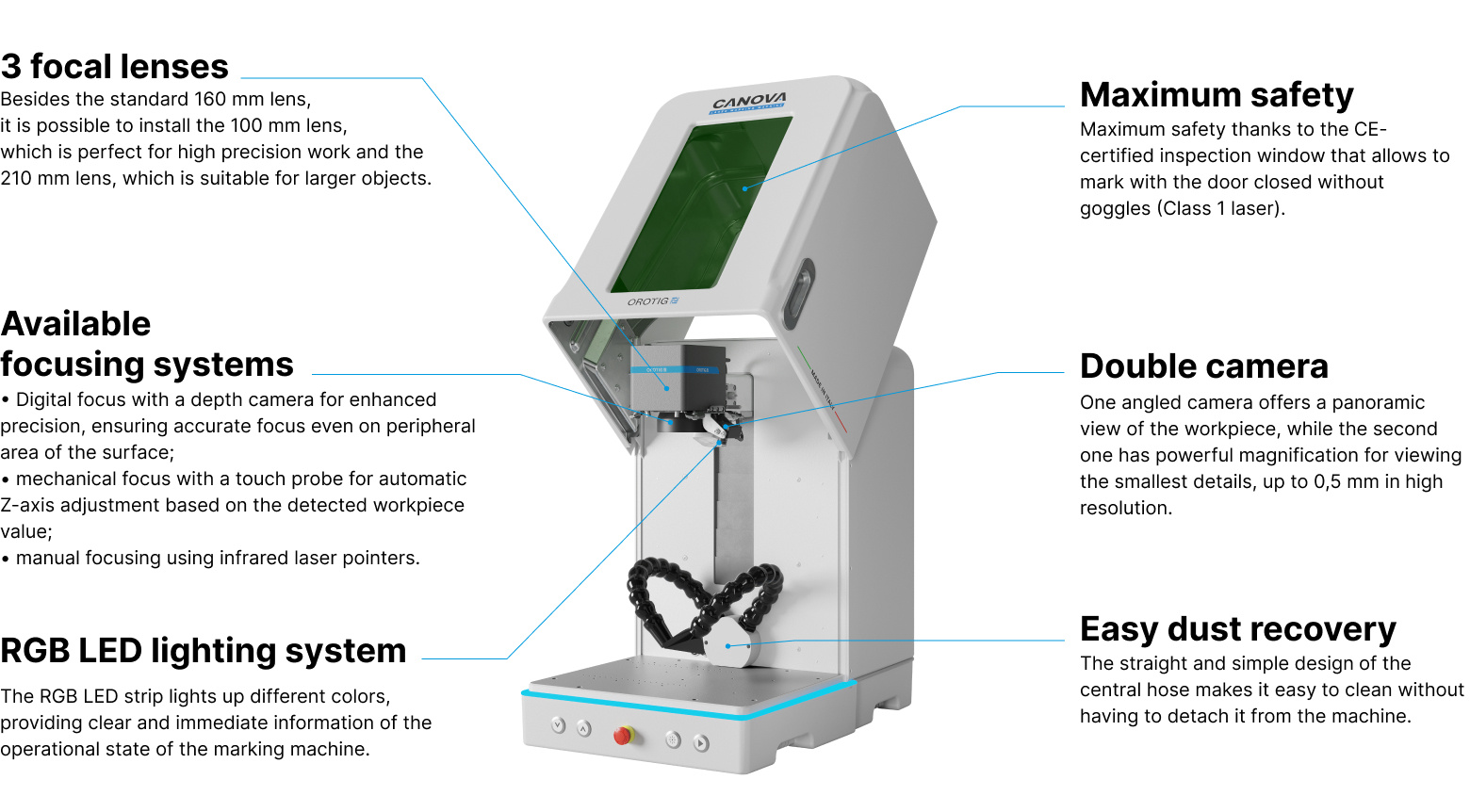

    Technical features of Orotig's Canova laser marker.

    TECHNICAL DATA

    Canova

    LASER TYPE

    Diode-Pumped Fiber (Yb) Laser

    LASER SOURCE (NOMINAL POWER)

    30 W, 50 W

    FOCAL LENSES

    100 mm, 160 mm, 210 mm

    MAX ENGRAVING AREA

    60×60 mm, 110×110 mm, 145×145 mm (depending on lens)

    Z - AXIS TYPE

    With stepper motor

    Z - AXIS STROKE

    263 mm

    SPEED RANGE

    Up to 8 m/s

    PULSE FREQUENCY

    37-600 Khz (30W) / 40-600 kHz (50W)

    MAX PULSE ENERGY

    0,8 mJ 37 kHz (30W) / 1,25 mJ 40 kHz (50W)

    PULSE WIDTH

    200 nS (30 W - 50 W)

    BEAM QUALITY

    <1,5 (30W) / <1,8 (50W)

    LASER CLASS

    Class 1 (closed), Class 3R (open)

    COOLING SYSTEM

    Forced air

    WAVELENGTH

    1064 nm

    POWER SUPPLY

    115 - 230 V ±10% 50-60 Hz

    SPOT DIAMETER

    35 μm

    WEIGHT

    45 Kg

    Canova
    go back

    Canova

    LASER TYPE

    Diode-Pumped Fiber (Yb) Laser

    LASER SOURCE (NOMINAL POWER)

    30 W, 50 W

    FOCAL LENSES

    100 mm, 160 mm, 210 mm

    MAX ENGRAVING AREA

    60×60 mm, 110×110 mm, 145×145 mm (depending on lens)

    Z - AXIS TYPE

    With stepper motor

    Z - AXIS STROKE

    263 mm

    SPEED RANGE

    Up to 8 m/s

    PULSE FREQUENCY

    37-600 Khz (30W) / 40-600 kHz (50W)

    MAX PULSE ENERGY

    0,8 mJ 37 kHz (30W) / 1,25 mJ 40 kHz (50W)

    PULSE WIDTH

    200 nS (30 W - 50 W)

    BEAM QUALITY

    <1,5 (30W) / <1,8 (50W)

    LASER CLASS

    Class 1 (closed), Class 3R (open)

    COOLING SYSTEM

    Forced air

    WAVELENGTH

    1064 nm

    POWER SUPPLY

    115 - 230 V ±10% 50-60 Hz

    SPOT DIAMETER

    35 μm

    WEIGHT

    45 Kg

    Rotary and spindles accessory for Orotig's Canova laser marker.

    Rotary & Spindles

    Tiltable support accessory for Orotig's Canova laser marker.

    Tiltable support

    3 in 1 clamp accessory for Orotig's Canova laser marker.

    3 in 1 clamp

    Honeycomb bracket accessory for Orotig's Canova laser marker.

    Honeycomb bracket

    Canova_2_Downloads
    Data Sheet Canova ITA
    Canova_2_Downloads
    Data Sheet Canova ENG
    broucher-canova
    Brochure Canova ITA
    broucher-canova
    Brochure Canova ENG
