Money

Value for money

Convenient and compact, effective and reliable welding of all precious metals.

Ingranaggio

Fast and versatile

All type of work can be carried out quickly, making it easy to customize products.

Compattezza

Compact

With its small footprint, it is perfect for those with limited space.

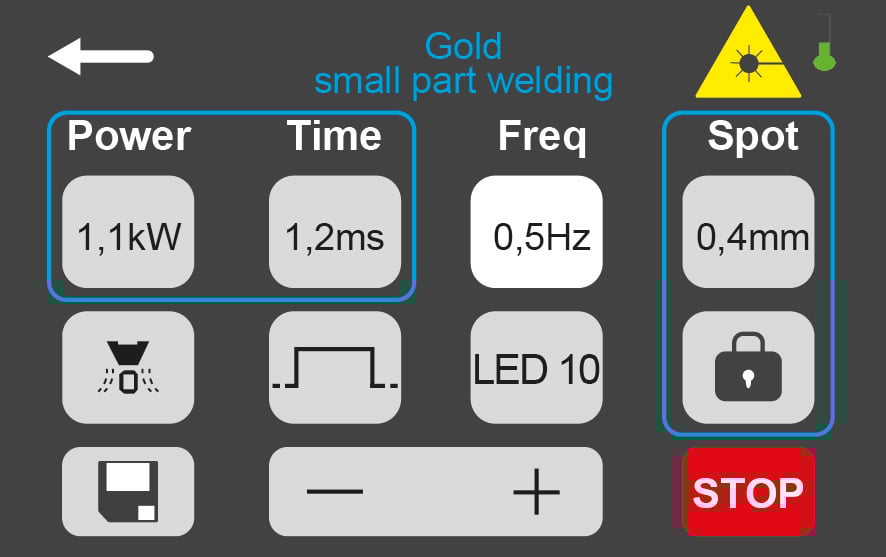

Comfort and ease of use

A simple, intuitive graphical interface and convenient touch-screen display make Evo White easy to use, even for less-experienced operators.

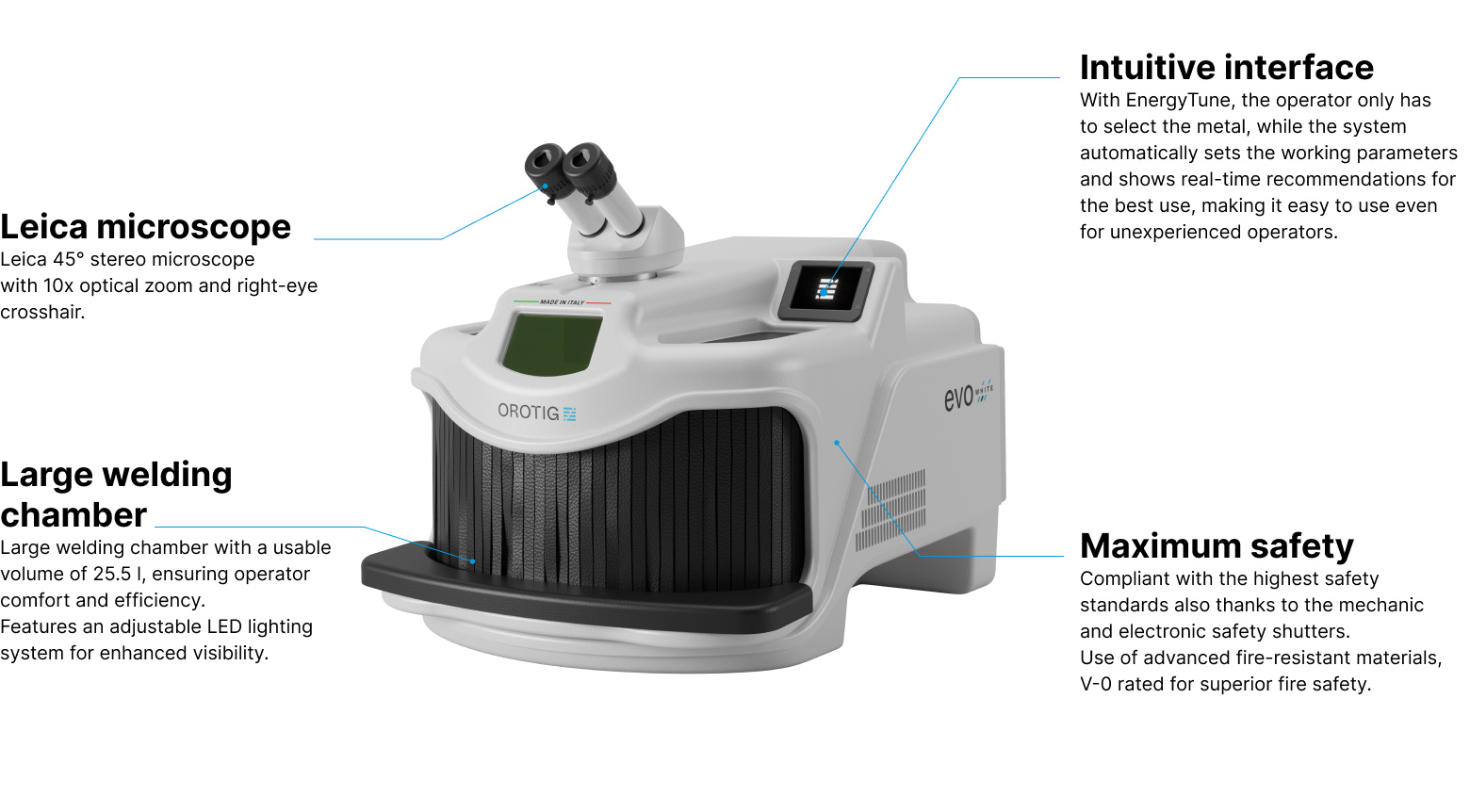

Leica stereo microscope of Orotig's Evo White welder for optimal supervision of the welding process.

Welding process control

Optimum supervision of the welding process is ensured by the combination of a Leica 10x stereo microscope (or LYNX, optional) and an integrated camera.

A manual encoder in the welding chamber of Orotig's Evo White laser welder allows for quick parameter adjustment.

Parameter adjustment

A manual encoder in the welding chamber allows for quick parameter adjustment during operation.

The large arm cushion and the open chamber of the Orotig' Evo White laser welder promote ergonomics and operator comfort.

User comfort

The large open chamber allows for greater manoeuvrability, while the large arm cushion is designed to improve ergonomics and operator comfort.

Compact and lightweight, perfect for small spaces

Although it is one of the most powerful machines in its class, Evo White is smaller in size than others, making it perfect even for limited spaces.

Size and dimensions of Orotig's Evo White laser welder.

Size and dimensions of Orotig's Evo White laser welder.

Features
Technical Data
Accessories
Downloads

Technical features of Orotig's Evo White laser welder.

TECHNICAL DATA

Evo White

CRYSTAL TYPE

Nd:YAG @ 1064

PULSE POWER

160 J

PULSE DURATION

25 ms

PEAK PULSE POWER

6.5 kW

AVERAGE POWER

75 W

PULSE FREQUENCY

0 - 15 Hz

ELECTRICAL

115 - 230 VAC ± 10%, 1P + N + PE, 50/60 Hz, 1.8 kW

FOCAL DIAMETER

0.15 to 1.5 mm

COMMAND ACCESS

External with 3.5" capacitive touch screen display, internal with rotary switch

COOLING SYSTEM

Liquid cooled (4 l) with forced ventilation

WEIGHT

32 Kg

Evo White

go back

Evo White

CRYSTAL TYPE

Nd:YAG @ 1064

PULSE POWER

160 J

PULSE DURATION

25 ms

PEAK PULSE POWER

6.5 kW

AVERAGE POWER

75 W

PULSE FREQUENCY

0 - 15 Hz

ELECTRICAL

115 - 230 VAC ± 10%, 1P + N + PE, 50/60 Hz, 1.8 kW

FOCAL DIAMETER

0.15 to 1.5 mm

COMMAND ACCESS

External with 3.5" capacitive touch screen display, internal with rotary switch

COOLING SYSTEM

Liquid cooled (4 l) with forced ventilation

WEIGHT

32 Kg

Dynascope head accessory for Orotig's Evo White laser welder.

Dynascope head

Height-adjustable motorized stand accessory for the Orotig's Evo White laser welder.

Adjustable microscope stand (5°-25°)

Pneumatic pedal accessory for the Orotig's Evo White laser welder.

Pneumatic pedal

Internal wrist rest accessory for the Orotig's Evo White laser welder.

Internal wrist rest

Motorised table accessory for the Orotig's Evo White laser welder.

Adjustable height table

Camera and monitor accessory for the Orotig's Evo White laser welder.

Camera and monitor

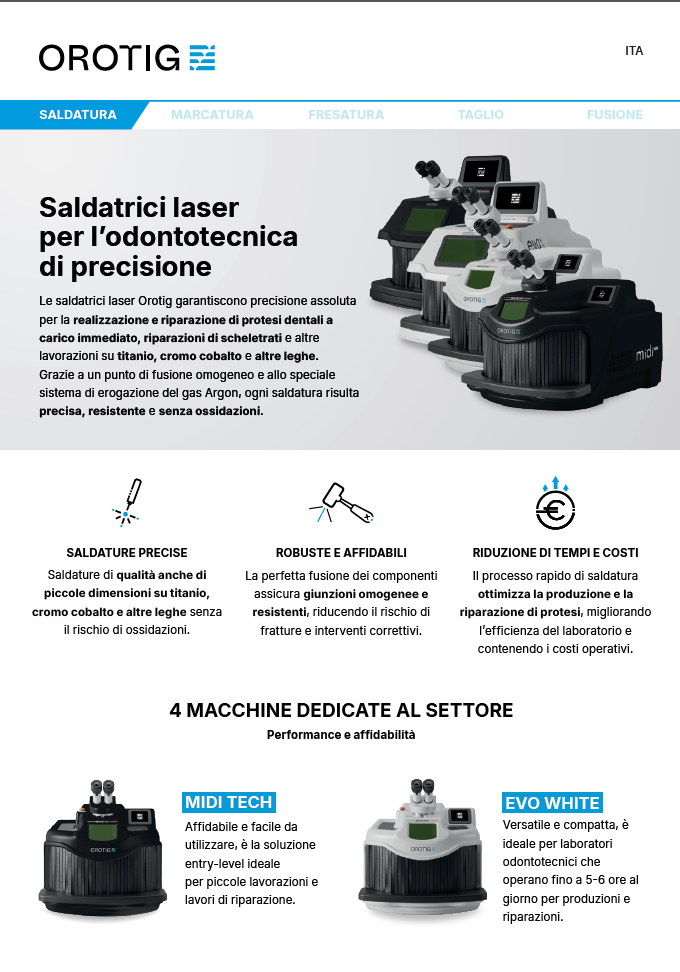

Brochure_EvoWhite

Brochure Evo White ITA

Brochure_EvoWhite

Brochure Evo White ENG

Discover other similar products

Orotig's Evo X laser welder welds all types of metal perfectly, guaranteeing top quality and precision work.

DISCOVER EVO X

Laser Welding Machine

Canova's laser marking machine is compact, safe and easy to use, and enables high-quality work.

DISCOVER CANOVA

Laser Marking Machine

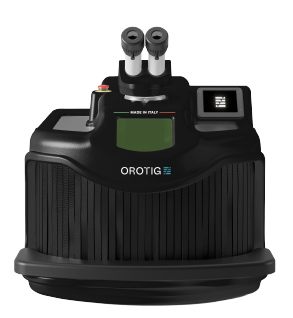

Orotig's Midi Tech laser welder is the reliable entry-level solution perfect for the most frequent goldsmithing work.
