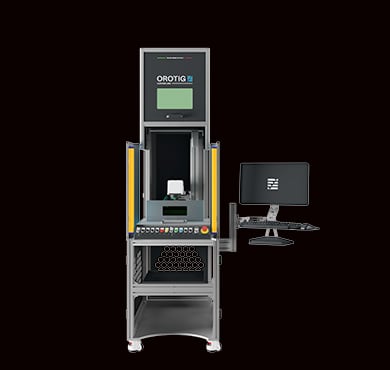

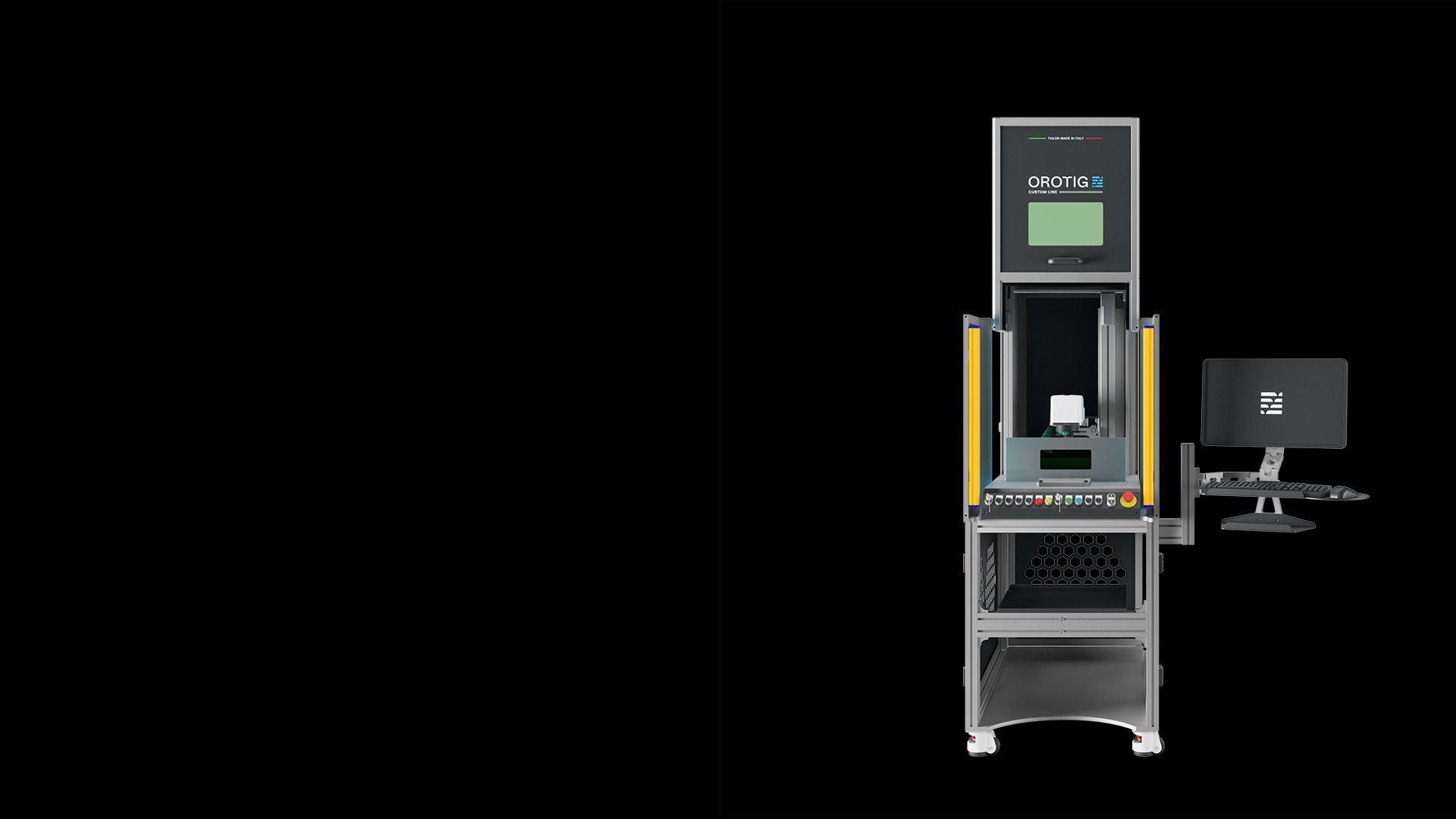

Simultaneous load/unload
laser marking solution
Ideal for high-volume production, this dual-station laser marker enables continuous engraving of similar components through a masked-time load/unload system, ensuring seamless workflow and optimal efficiency.

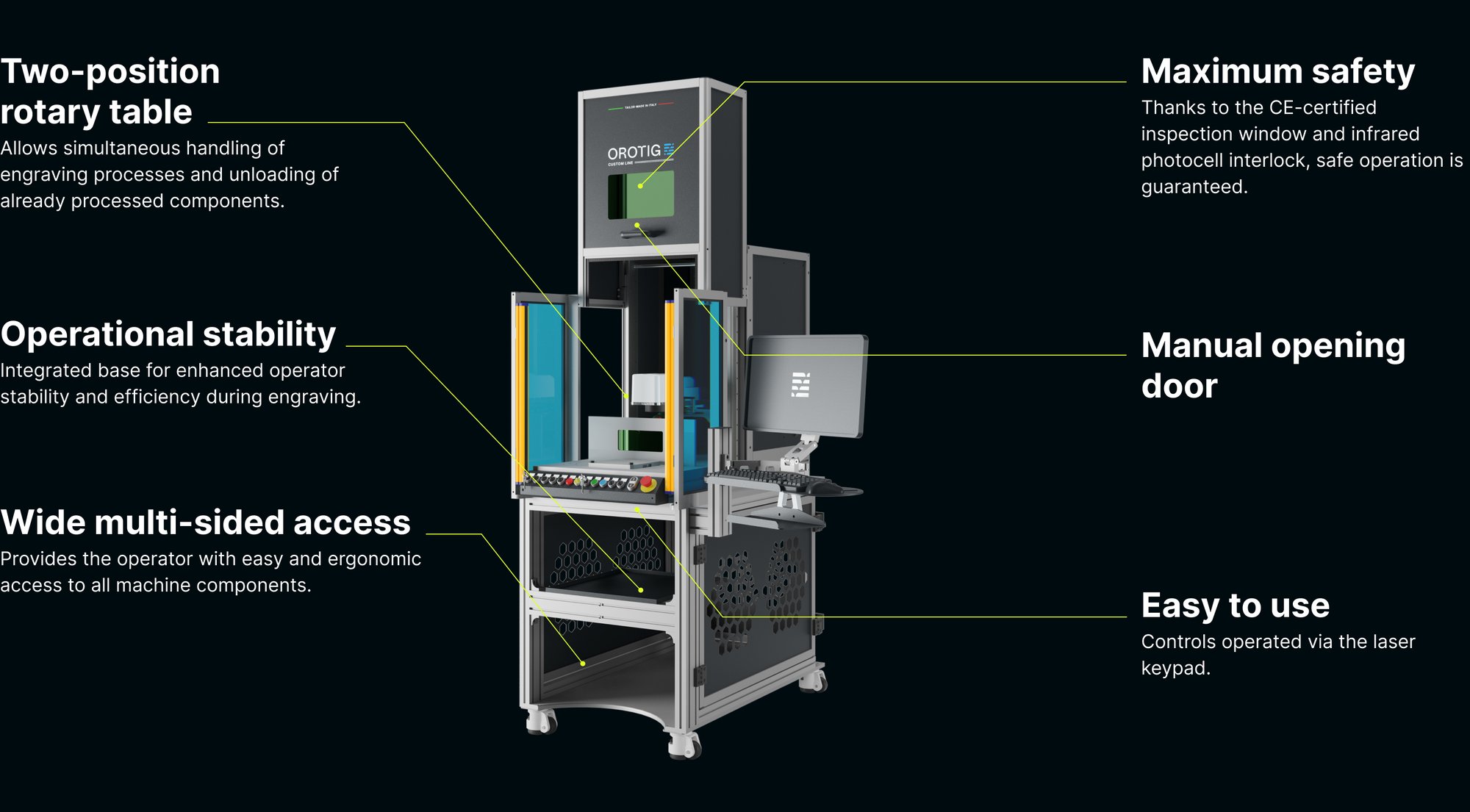

Optimized Workflow
Masked cycle laser engraver equipped with two stations for simultaneous loading and unloading. It enables non-stop production cycles while maintaining high process reliability.
Certified Safety
A CE-certified inspection window and infrared safety barriers ensure full protection during closed-door operation, eliminating the need for protective goggles.
High Load Capacity
The rotary table supports up to 25 kg per station, for a total load capacity of 50 kg, making it suitable for engraving heavier components.

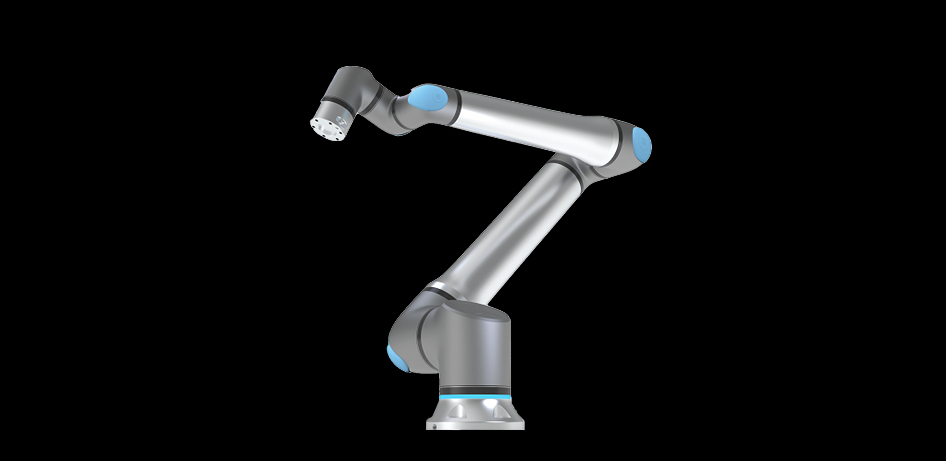

Robot Automation
The rotary laser marker workstation integrates seamlessly with robotic arms and mechanical systems, automating workflows to boost efficiency and productivity—fully tailored to each client’s production needs.

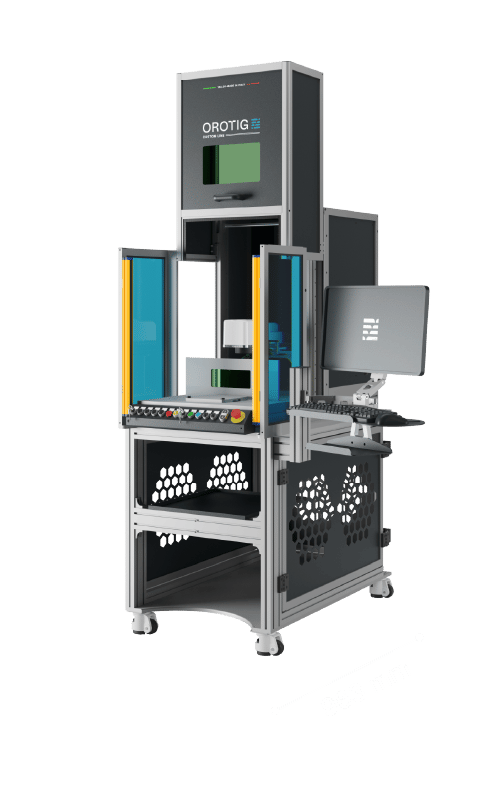

Size and Dimensions
- Features
- Technical Data
- Accessories
- Downloads
TECHNICAL DATA
Rotary Laser Marking Workstation
Power sources available
30 W, 30 W MOPA, 50 W, 70 W, 100 W
Focal lenses available
100 mm, 160 mm, 210 mm
Marking area
60 x 60 mm, 110 × 110 mm, 145 x 145 mm (depending on lens)
Type of Z axis
With stepper motor
Stroke of Z axis
Min 60 mm – max 610 mm
Max dimensions of workpiece
200 mm x 200 mm x 200 mm
Max weight of workpiece
25 kg
Rotary table diameter
490 mm
Safety class
Class 1 (closed), Class 3R (open)
Cooling system
Forced air
Wave length
1064 nm
Power supply
230 V ±10% 50-60 Hz
Dimensions
W 827 mm, D 1243 mm, H 1843 mm (2443 mm with door open)
Weight
250 kg
TBH BF 100 R e filtri M5, HEPA 13, activated carbon
(airflow 30/230 m³/h, diameter 50 mm)
TBH LN 230 e filtri M5, HEPA 13, activated carbon
(airflow 50/250 m³/h, diameter 50 mm)
