Configurable benchtop engraving machines
Compact and modular, ideal for single or batch marking on metal, plastic, and rubber. Suitable for a wide range of applications such as eyeglass temples, handles, faucets, tags, and rings.

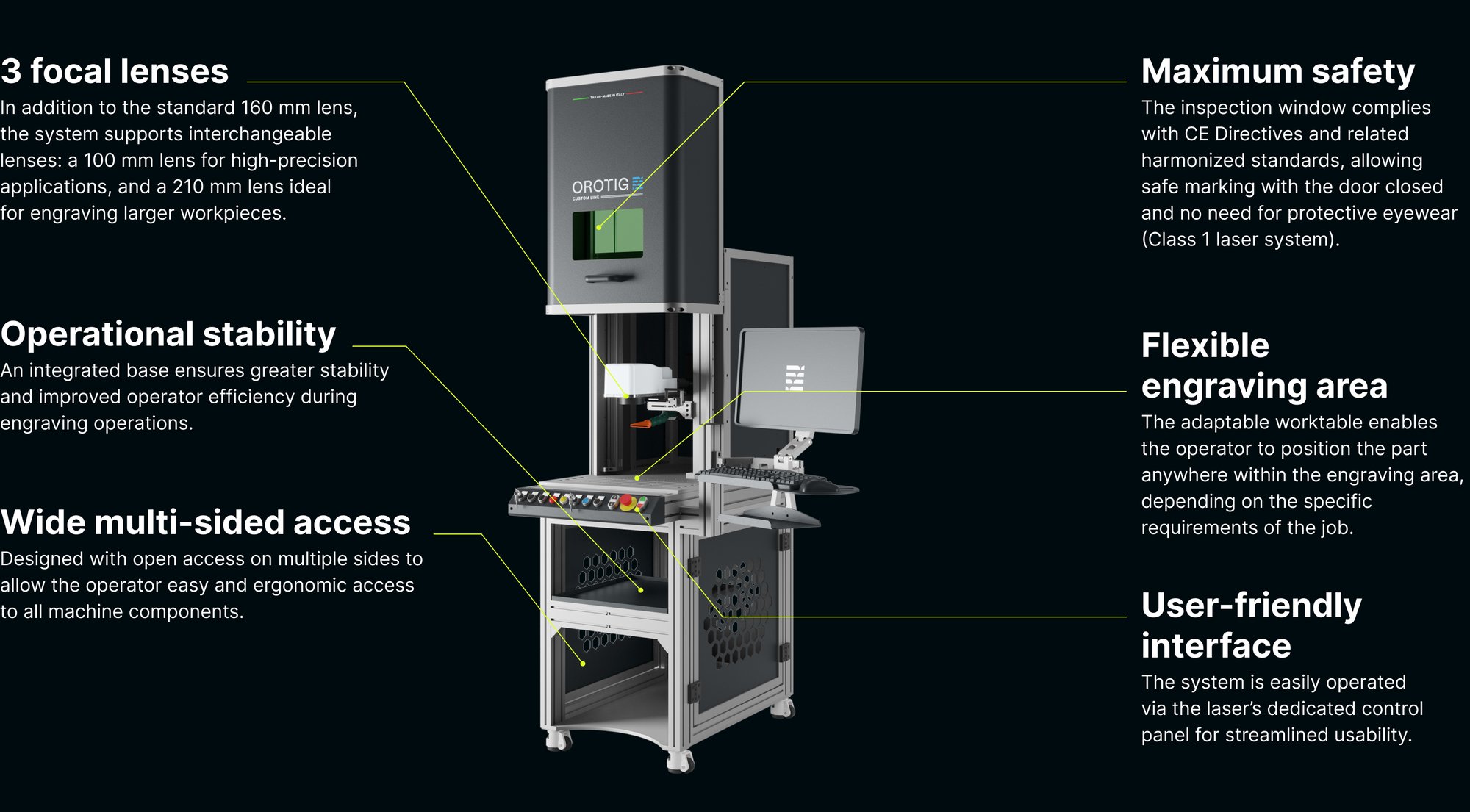

Versatile
Adjustable work surface, allowing the operator to position the piece to be marked across the entire engraving area.
Compact
Reliable technology designed for minimal maintenance and reduced downtime.
Maximum Safety
Engraving with closed-door operation and no need for protective eyewear, thanks to an inspection window compliant with CE standards.

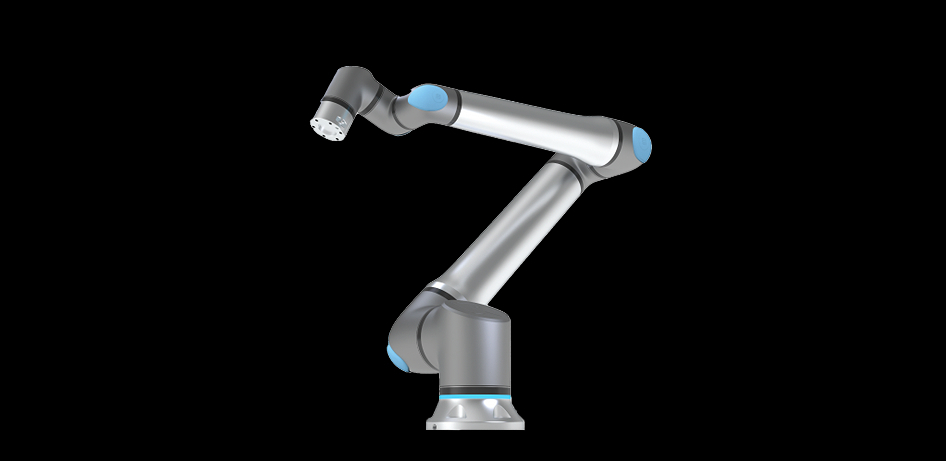

Robot Automation
The Safety Box MPH bench laser marking machine integrates seamlessly with robotic arms and mechanical systems, automating workflows to boost efficiency and productivity—fully tailored to each client’s production needs.

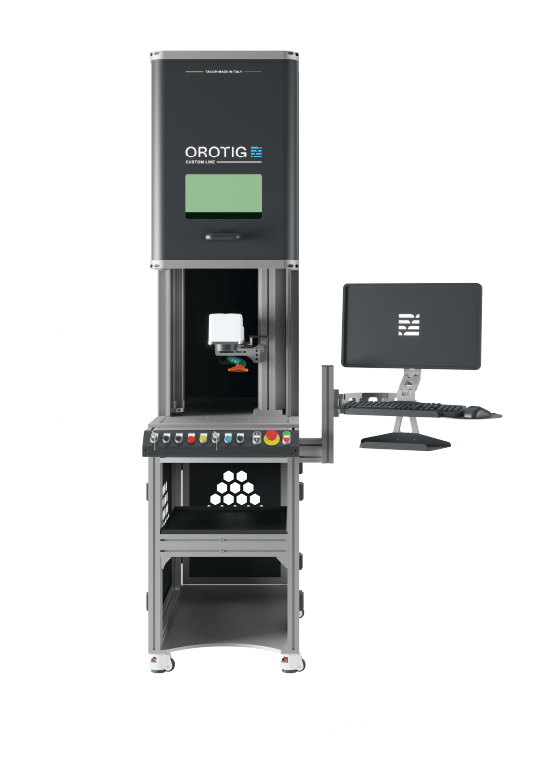

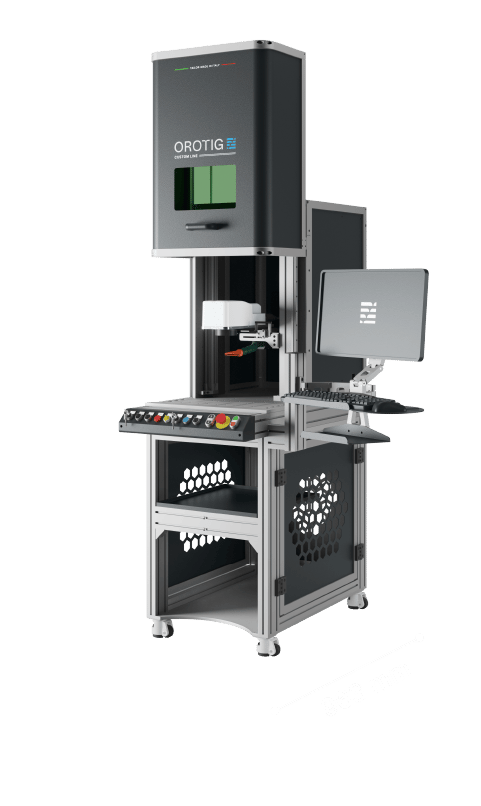

Size and Dimensions
- Features
- Technical Data
- Accessories
- Downloads
TECHNICAL DATA
Safety Box MPH
Power sources available
30 W, 30 W MOPA, 50 W, 70 W, 100 W
Focal lenses available
100 mm, 160 mm, 210 mm
Marking area
60 x 60 mm, 110 × 110 mm, 145 x 145 mm (depending on lens)
Type of Z axis
With stepper motor
Stroke of Z axis
Min 60 mm – max 610 mm
Max dimensions of workpiece
700 mm x 400 mm
Max weight of workpiece
200 kg
Safety class
Class 1 (closed), Class 3R (open)
Cooling system
Forced air
Wave length
1064 nm
Power supply
230 V ±10% 50-60 Hz
Dimensions
L 580 mm – P 963 mm – A 938 mm (1538 mm with door open)
Weight
220 kg
XL – Dimensions
L 880 mm, P 963 mm, A 938 mm(2388 mm with door open)
XL – Weight
250 kg
XL – Max dimensions of workpiece
700 mm x 700 mm

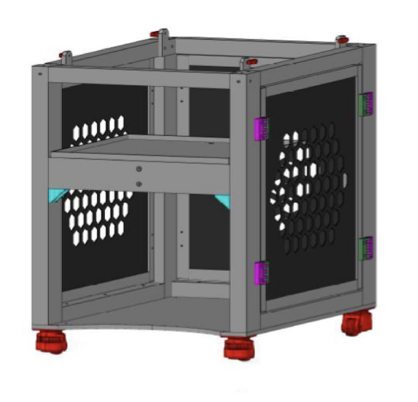

Base Support
Fixed stand with wheels for housing the PC, laser rack, and chiller, articulated monitor arm, keyboard, and mouse (TMV).
Spindles
DIV 20: Precision self-centering chuck with a diameter of 80 mm.
DIV 32: Precision self-centering chuck with a diameter of 125 mm.
Custom: Custom chuck can be requested with hundredth resolution..
TBH BF 100 R e filtri M5, HEPA 13, activated carbon
(airflow 30/230 m³/h, diameter 50 mm)
TBH LN 230 e filtri M5, HEPA 13, activated carbon
(airflow 50/250 m³/h, diameter 50 mm)
Discover Other Similar Products
DISCOVER ROTARY WORKSTATION
Custom Line

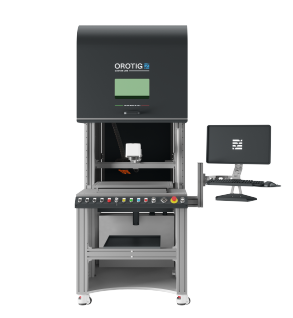

DISCOVER MPH XYZ
